1
Engine displacement
250
2
Model
MP3
3
Year
2008
4
Trim
MP3 ie LT
5
Parts Catalog

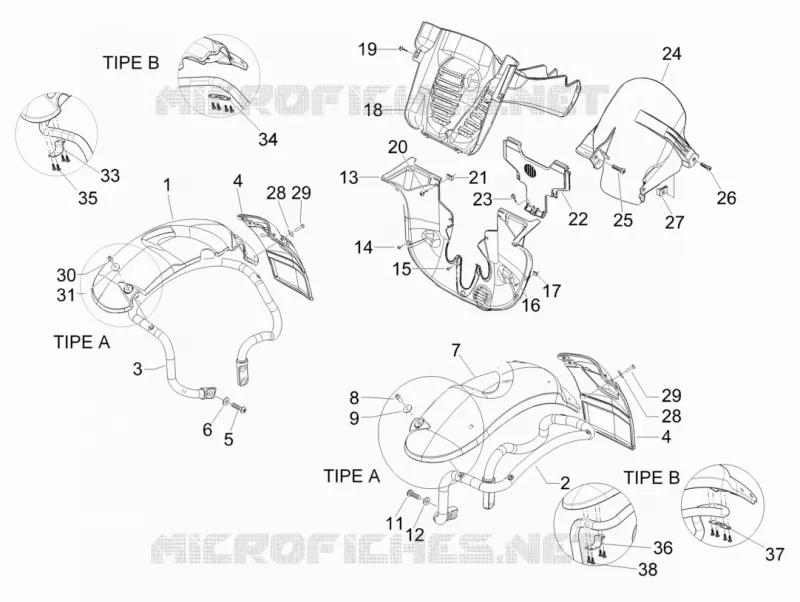

Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Front shield
by
Silencer
Wheel huosing - Mudguard
1
2
3
4
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
33
34
35
36
37
38
1
Right front mudguard
650971
Not Available
1
Right front mudguard
665506
Not Available
1
Right front mudguard
666414
Not Available
2
Left mudguard pipe with U.P.
651228
£175,85 Unit Price incl. VAT
2
Pipe for left mudguard with U.P.
649257
£47,08 Unit Price incl. VAT
3
Pipe for right mudguard with U.P.
649284
£47,08 Unit Price incl. VAT
3
Right mudguard pipe with U.P.
665508
£175,85 Unit Price incl. VAT
4
Splash guard for mudguard
647987
Not Available
4
Splash guard for mudguard
665963
£52,84 Unit Price incl. VAT
5
Hex socket screw
564606
£1,12 Unit Price incl. VAT
6
Spring washer
709047
£0,70 Unit Price incl. VAT
7
Left front mudguard
666221
Not Available
7
Left front mudguard
651311
Not Available
7
Left front mudguard
650970
Not Available
8
Hex socket screw
650902
Not Available
9
Flat washer
827526
£0,17 Unit Price incl. VAT
11
Hex socket screw
564606
£1,12 Unit Price incl. VAT
12
Spring washer
709047
£0,70 Unit Price incl. VAT
13
Wheel compartment
623255
£55,93 Unit Price incl. VAT
14
Self-tap screw
576189
Not Available
14
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
15
screw
259577
£0,97 Unit Price incl. VAT
16
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
17
Spring plate
CM017410
£0,71 Unit Price incl. VAT
18
Wheel housing central closing
623067
Not Available
19
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
20
Self-tap screw
576189
Not Available
20
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
21
Spring plate
CM017410
£0,71 Unit Price incl. VAT
22
Wheel housing central part
623548
Not Available
23
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
23
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
24
Rear mudguard
655431
£30,12 Unit Price incl. VAT
25
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
26
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
27
Spring plate M6
254485
£1,64 Unit Price incl. VAT
28
Flat washer
827526
£0,17 Unit Price incl. VAT
29
Hex socket screw M5x10
651014
£1,27 Unit Price incl. VAT
30
Hex socket screw
650902
Not Available
31
Flat washer
827526
£0,17 Unit Price incl. VAT
33
Front bracket
651192
£7,28 Unit Price incl. VAT
34
Rear bracket
651271
£7,62 Unit Price incl. VAT
35
Self tapping screw
296141
£1,39 Unit Price incl. VAT
36
Front bracket
651192
£7,28 Unit Price incl. VAT
37
Rear bracket
651271
£7,62 Unit Price incl. VAT
38
Self tapping screw
296141
£1,39 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
