1
Engine displacement
250
2
Model
MP3
3
Year
2009
4
Trim
MP3 ie LT
5
Parts Catalog

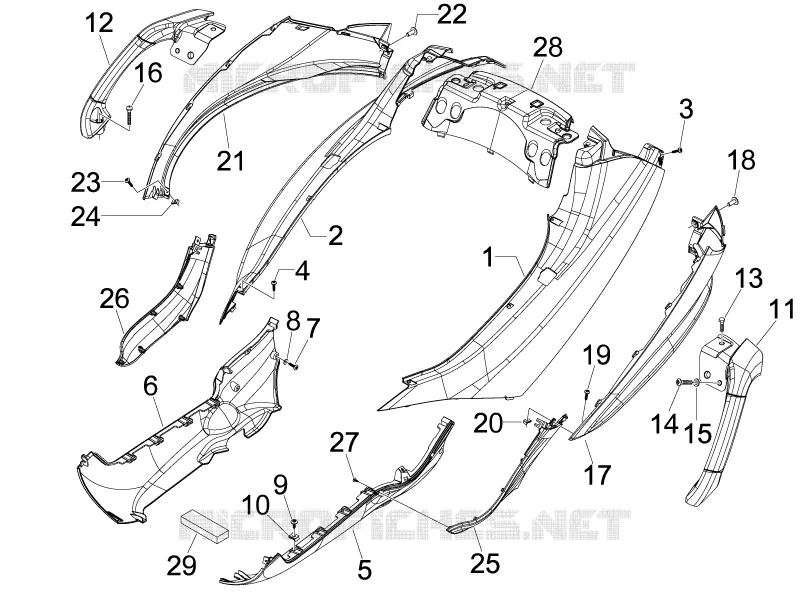

Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers
by
Driven pulley
Side cover - Spoiler
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
LH side panel
62444600EV
Not Available
1
LH side panel
62444600DE
Not Available
1
LH side panel
62444600ND
Not Available
1
LH side panel
624446
£133,81 Unit Price incl. VAT
1
LH side panel
62444600BR
Not Available
1
LH side panel
62444600EU
Not Available
1
LH side panel
62444600XN2
Not Available
2
RH side panel
62444700XN2
Not Available
2
RH side panel
62444700EU
£94,14 Unit Price incl. VAT
2
RH side panel
62444700DE
Not Available
2
RH side panel
62444700ND
Not Available
2
RH side panel
624447
£133,81 Unit Price incl. VAT
2
RH side panel
62444700BR
Not Available
2
RH side panel
62444700EV
£165,98 Unit Price incl. VAT
3
Screw M6x16
272836
£1,13 Unit Price incl. VAT
4
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
5
Left spoiler
62306900ND
Not Available
5
Left spoiler
623069
Not Available
5
Left spoiler
62306900EV
Not Available
5
Left spoiler
62306900XN2
Not Available
5
Left spoiler
62306900DE
Not Available
5
Left spoiler
62306900BR
Not Available
5
Left spoiler
62306900EU
Not Available
6
Right spoiler
62307000BR
Not Available
6
Right spoiler
62307000DE
Not Available
6
Right spoiler
62307000EV
Not Available
6
Right spoiler
62307000ND
Not Available
6
Right spoiler
623070
Not Available
6
Right spoiler
62307000XN2
Not Available
6
Right spoiler
62307000EU
Not Available
7
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
8
Washer
013963
Not Available
9
Self-tap screw
576189
Not Available
10
Spring plate
CM017410
£0,71 Unit Price incl. VAT
11
Left passenger handle
624452
Not Available
11
Left passenger handle
62445200EM
£125,52 Unit Price incl. VAT
12
Right passenger handle
62445300EM
£125,52 Unit Price incl. VAT
12
Right passenger handle
624453
Not Available
13
Hex screw M8x30
031122
Not Available
14
screw M6x40
272624
Not Available
15
Hex screw M8x22
031119
Not Available
16
Washer
013776
Not Available
17
Lower side panel l.h.
655812000C
Not Available
18
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
19
Self-tap screw
576189
Not Available
20
Spring plate
CM017410
£0,71 Unit Price incl. VAT
21
Lower side panel r.h.
655813000C
Not Available
22
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
23
Self-tap screw
576189
Not Available
24
Spring plate
CM017410
£0,71 Unit Price incl. VAT
25
Left spoiler closing
624450000C
£36,04 Unit Price incl. VAT
26
Right spoiler closing
624451000C
£28,63 Unit Price incl. VAT
27
Self tapping screw
297498
£0,60 Unit Price incl. VAT
28
Side closing with boot
655807
£42,41 Unit Price incl. VAT
29
Pad
174968
£1,88 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
