1
Engine displacement
300
2
Model
MP3
3
Year
2010
4
Trim
MP3 4T 4V ie LT Ibrido
5
Parts Catalog

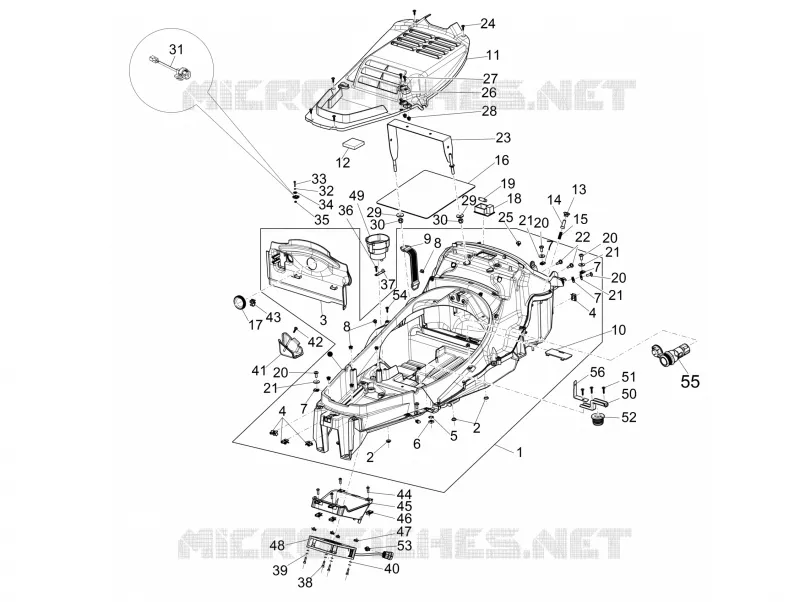

Helmet huosing - Undersaddle
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers
by
Rear cover - Splash guard
Helmet huosing - Undersaddle
52
53
54
56
55
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
30
29
29
28
27
26
25
24
23
22
21
21
21
21
20
20
20
20
19
18
17
16
15
14
13
12
11
10
9
9
8
8
7
7
7
7
6
5
4
3
2
2
1
1
Complete helmet compartment
654790
£204,76 Unit Price incl. VAT
2
Knurled bushing
830056
£1,27 Unit Price incl. VAT
3
Helmet compartment internal bulkhead
654788
Not Available
4
Spring plate M6
254485
£1,64 Unit Price incl. VAT
5
Stop ring
829377
£19,39 Unit Price incl. VAT
6
Nut
709041
£0,44 Unit Price incl. VAT
7
Spring plate
CM017410
£0,71 Unit Price incl. VAT
8
Expansion plug
199190
£0,17 Unit Price incl. VAT
9
Strip
090854
Not Available
10
Type-testing inspection door
576793
£8,95 Unit Price incl. VAT
11
Complete helmet compartment closing
654793
Not Available
12
Conductive buffer
641834
£52,74 Unit Price incl. VAT
13
Maintenance
621098
£2,59 Unit Price incl. VAT
14
Button
621097
£3,74 Unit Price incl. VAT
15
Spring
621099
£2,17 Unit Price incl. VAT
16
Battery matt
656291
£9,71 Unit Price incl. VAT
17
Cover
483859
£1,87 Unit Price incl. VAT
18
Ceiling bowl
293154
£14,35 Unit Price incl. VAT
19
Torpedo shaped lamp 12V-5W
071633
Not Available
20
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
21
Washer
297029
£1,27 Unit Price incl. VAT
22
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
23
Battery bracket with U.P.
654789
Not Available
24
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
24
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
25
Spring
140435
£1,00 Unit Price incl. VAT
26
Fastener cable
655708
£12,47 Unit Price incl. VAT
27
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
28
Expansion plug
199190
£0,17 Unit Price incl. VAT
29
Washer
709077
£0,61 Unit Price incl. VAT
30
Low self-locking nut
709052
£1,13 Unit Price incl. VAT
31
End of the stroke switch
640063
£69,10 Unit Price incl. VAT
32
Washer
006963
Not Available
33
screw M3x20
AP8121577
£2,32 Unit Price incl. VAT
34
Washer
003053
Not Available
35
Nut M 3
020003
Not Available
36
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
37
Spring
464620
£4,97 Unit Price incl. VAT
38
Hex socket screw M4x16
959559
£1,27 Unit Price incl. VAT
39
Flat washer 4,2x7,6x0,9
016404
Not Available
40
Washer 4,3x8x0,5
003054
Not Available
41
Cable harness cross closing
655707
£14,75 Unit Price incl. VAT
42
Self-tap screw M3x20
258146
£0,65 Unit Price incl. VAT
43
Sheet edge spring
CM013203
£2,45 Unit Price incl. VAT
44
screw
842041
£0,97 Unit Price incl. VAT
45
Complete electrical duct
654786
£47,60 Unit Price incl. VAT
46
Spring plate M5
248419
£2,00 Unit Price incl. VAT
47
Scheibe
959263
£1,52 Unit Price incl. VAT
48
Brush-less electric fan assembly
58217R5
£241,24 Unit Price incl. VAT
49
Recharge plug housing
654779
£30,59 Unit Price incl. VAT
50
Cable harness bracket
655709
£12,94 Unit Price incl. VAT
51
Self-tap screw M3x20
258146
£0,65 Unit Price incl. VAT
52
Motor phase cable grommet
654783
£6,86 Unit Price incl. VAT
53
Spring for connector
639560
£3,61 Unit Price incl. VAT
54
screw
640939
£1,24 Unit Price incl. VAT
55
LV socket 12V
294770
£26,17 Unit Price incl. VAT
56
Connector bracket
641828
£19,78 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
