1
Engine displacement
300
2
Model
MP3
3
Year
2010
4
Trim
MP3 4T 4V ie LT Ibrido
5
Parts Catalog

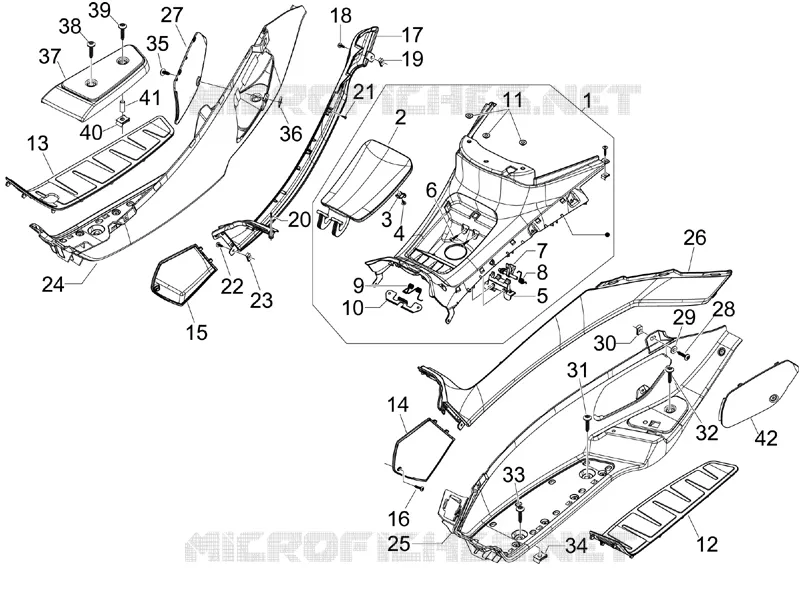

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Saddle/seats
by
Fork/steering tube - Steering bearing unit
Central cover - Footrests
9
39
27
25
22
19
10
42
41
40
38
37
36
35
34
33
32
31
30
29
28
26
24
23
21
20
18
17
16
15
14
13
12
11
8
7
6
5
4
3
2
1
1
Complete central cover
65677800DG
Not Available
2
Fuel flap
620250000C
£26,00 Unit Price incl. VAT
2
Fuel flap
65677900DG
Not Available
3
Plate
AP8161182
£15,12 Unit Price incl. VAT
4
Self tapping screw
297498
£0,60 Unit Price incl. VAT
5
Maintenance
620491
£3,46 Unit Price incl. VAT
6
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
7
Cam lever
576626
£2,20 Unit Price incl. VAT
8
Spring
575604
£2,70 Unit Price incl. VAT
9
Spring
621507
£7,58 Unit Price incl. VAT
10
Flap retainer plate
624465
£7,96 Unit Price incl. VAT
11
Knurled bushing
830056
£1,27 Unit Price incl. VAT
12
Lh mat
623186
£47,82 Unit Price incl. VAT
13
Rh mat
655842
Not Available
14
Left fuse access flap
624458
£42,88 Unit Price incl. VAT
14
Left fuse access flap
62445800EM
Not Available
15
Right fuse access flap
62445900EM
Not Available
15
Right fuse access flap
624459
£42,88 Unit Price incl. VAT
16
screw
015728
Not Available
17
Right central cover
62444500EM
Not Available
17
Right central cover
624445
£50,30 Unit Price incl. VAT
18
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
19
Spring plate
230359
£0,95 Unit Price incl. VAT
20
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
21
Self tapping screw
297498
£0,60 Unit Price incl. VAT
22
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
23
Spring plate
CM017410
£0,71 Unit Price incl. VAT
24
RH footrest
65677200DG
Not Available
24
RH footrest
657485000C
£63,46 Unit Price incl. VAT
25
LH footrest
653286000C
£64,31 Unit Price incl. VAT
25
LH footrest
65677300DG
£90,73 Unit Price incl. VAT
26
Left central cover
62444400EM
£82,19 Unit Price incl. VAT
26
Left central cover
624444
£50,30 Unit Price incl. VAT
27
Right spark plug inspection cover
65677000DG
Not Available
27
Spark plug insp. door DX
623254000C
£16,45 Unit Price incl. VAT
28
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
29
Washer
297029
£1,27 Unit Price incl. VAT
30
Spring plate
CM017410
£0,71 Unit Price incl. VAT
31
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
32
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
33
Screw metrica
CM179303
£1,27 Unit Price incl. VAT
34
Spring plate M6
254485
£1,64 Unit Price incl. VAT
35
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
36
Spring plate
CM017410
£0,71 Unit Price incl. VAT
37
Right rising footrest
655843
£23,96 Unit Price incl. VAT
38
Self tapping screw M6x35
259708
£1,02 Unit Price incl. VAT
39
Spring plate M6
254485
£1,64 Unit Price incl. VAT
40
Screw m6x55
259988
Not Available
41
Spacer
655844
£5,51 Unit Price incl. VAT
42
Spark plug insp. door SX
653287000C
£16,45 Unit Price incl. VAT
42
Left spark plug inspection cover
65677100DG
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
