1
Engine displacement
300
2
Model
MP3
3
Year
2011
4
Trim
MP3 ie LT Touring
5
Parts Catalog

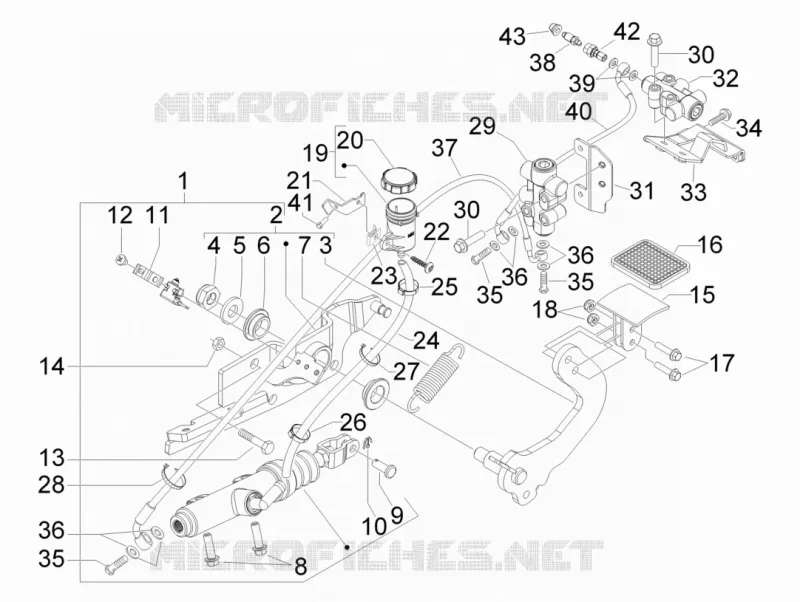

Control pedals - Levers
6
Parts Diagram
Parts Catalog
Rear wheel
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Control pedals - Levers
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
35
35
36
36
36
37
38
39
40
41
42
43
1
Pump support bracket complete with brake pedal
665581
£352,32 Unit Price incl. VAT
2
Bellows
651044
£20,28 Unit Price incl. VAT
3
Brake pump, assy
CM082901
£150,58 Unit Price incl. VAT
4
Self locking nut M10
002440
Not Available
5
Flat washer
178790
£1,64 Unit Price incl. VAT
6
Bush
650636
£9,88 Unit Price incl. VAT
7
Spring
650670
£4,61 Unit Price incl. VAT
8
Hex screw M6x20
018639
Not Available
9
Pin
650651
£12,98 Unit Price incl. VAT
10
Split pin
012761
Not Available
11
Spring
650646
£11,46 Unit Price incl. VAT
12
screw
018644
Not Available
13
Hex socket screw M8x16
031116
Not Available
14
Low self-locking nut
709052
£1,13 Unit Price incl. VAT
15
Pedal fork with U.P.
650711
£32,22 Unit Price incl. VAT
16
Brake pedal rubber
228793
£8,99 Unit Price incl. VAT
17
screw
582469
£1,21 Unit Price incl. VAT
18
Self locking nut M6
195482
£1,27 Unit Price incl. VAT
19
Brake oil tank
274598
£66,44 Unit Price incl. VAT
20
Cover
498431
£25,02 Unit Price incl. VAT
21
Oil tank connector bracket with U.P.
650676
£15,41 Unit Price incl. VAT
22
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
23
Spring plate
CM017409
£1,27 Unit Price incl. VAT
24
Anti-tilting device oil pump tank return pipe
650772
£27,38 Unit Price incl. VAT
25
Hose clamp
CM002904
£0,54 Unit Price incl. VAT
26
Hose clamp
CM002907
£1,27 Unit Price incl. VAT
27
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
28
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
29
Rear pressure adjustment valve
CM082802
£184,30 Unit Price incl. VAT
30
Screw w/ flange M6x40
414834
Not Available
31
Bracket with U.P.
650625
£15,14 Unit Price incl. VAT
32
Front pressure adjustment valve.
CM082803
£131,75 Unit Price incl. VAT
33
Distribution frame support bracket with U.P.
650648
£27,18 Unit Price incl. VAT
34
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
35
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
36
Gasket
127927
£1,04 Unit Price incl. VAT
37
BREAK PIPES
650720
£48,89 Unit Price incl. VAT
38
Bleed screw
651461
£12,96 Unit Price incl. VAT
39
Gasket
127927
£1,04 Unit Price incl. VAT
40
BREAK PIPES
650721
£65,53 Unit Price incl. VAT
41
Hex socket screw
122675
£0,38 Unit Price incl. VAT
42
Joint
597033
£27,38 Unit Price incl. VAT
43
Cap
651462
£7,04 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
