1
Engine displacement
350
2
Model
BEVERLY
3
Year
2017
4
Trim
Beverly 4T ST ie ABS E4
5
Parts Catalog

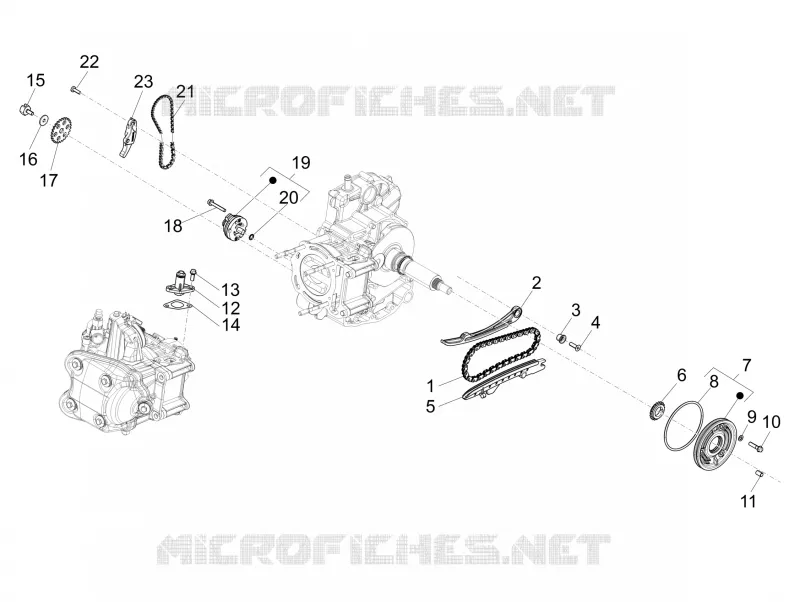

Oil pump
6
Parts Diagram
Parts Catalog
Throttle body - Injector - Union pipe
by
Fuel tank
Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Camshaft chain
82992R
£39,91 Unit Price incl. VAT
2
Chain tensioner rod
B015195
£8,50 Unit Price incl. VAT
3
Spacer
825737
£3,13 Unit Price incl. VAT
4
Screw
874037
£1,27 Unit Price incl. VAT
5
Chain guide plate
880645
£8,87 Unit Price incl. VAT
6
Timing chain pinion
82782R
£22,31 Unit Price incl. VAT
7
Timing system cover cpl.
B0161755
£91,00 Unit Price incl. VAT
8
Gasket
B016176
£9,28 Unit Price incl. VAT
9
Plain washer
879027
£0,78 Unit Price incl. VAT
10
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
11
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
12
Chain tensioner bracket
289919
Not Available
13
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
14
Guarnizione cilindro/tendicatena
847928
£3,24 Unit Price incl. VAT
15
Special screw
878753
£13,76 Unit Price incl. VAT
16
Belleville spring Ø6,4xØ20x2
436695
£2,09 Unit Price incl. VAT
17
Oil pump gear
B013970
£9,44 Unit Price incl. VAT
18
Screw w/ flange M5x35
829593
£1,27 Unit Price incl. VAT
19
Oil pump assembly
83085R
£43,10 Unit Price incl. VAT
20
Snap ring
871301
£0,98 Unit Price incl. VAT
21
Oil pump chain
831333
£21,70 Unit Price incl. VAT
22
screw
873102
£1,21 Unit Price incl. VAT
23
Chain tensioner sliding block
B015581
£19,73 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
