1
Engine displacement
400
2
Model
MP3
3
Year
2008
4
Trim
MP3 ie LT - Sport
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
Flywheel magneto

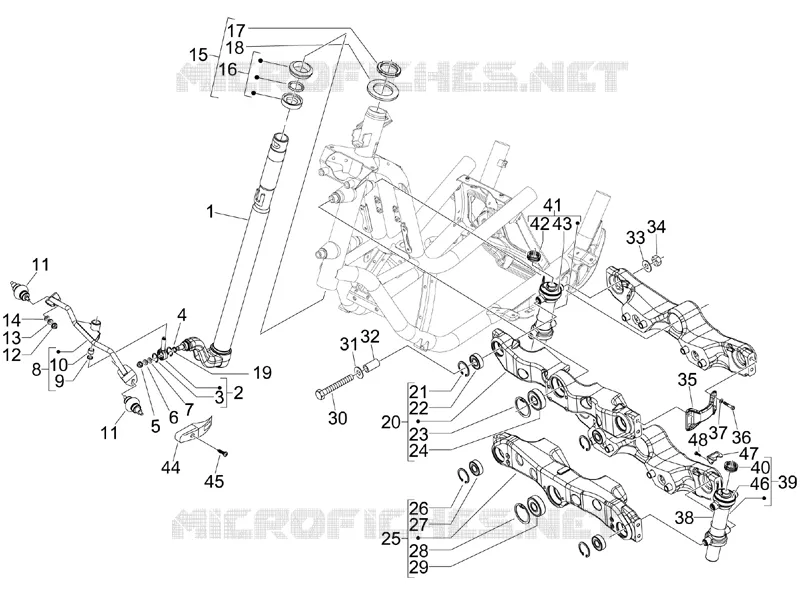

Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
Steering tube assembly with U.P.
58568R
£193,00 Unit Price incl. VAT
1
Steering tube assembly with U.P.
56417R
Not Available
2
Steering tube control axis
622751
£68,90 Unit Price incl. VAT
3
Snap ring
006628
Not Available
4
Safety washer
006408
Not Available
5
Nut M8x1,25
967363
£1,27 Unit Price incl. VAT
6
Washer
006032
Not Available
7
Flat washer 8,4x18x2
003038
Not Available
8
Complete steering control tie rod.
622744
£175,18 Unit Price incl. VAT
9
Gasket ring
167018
£2,88 Unit Price incl. VAT
10
Roller cage
167016
£4,25 Unit Price incl. VAT
11
Complete cardan joint
6485624
Not Available
11
Complete cardan joint
666901
£262,28 Unit Price incl. VAT
12
Plain washer 8,2x20x2,5
013861
Not Available
13
Washer 16.2x25x0.5
647494
£1,24 Unit Price incl. VAT
13
Washer 16.2x25x1.5
666546
£4,50 Unit Price incl. VAT
14
Nut M8x1,25
967363
£1,27 Unit Price incl. VAT
15
Central headstock bearing unit
601917
Not Available
16
Upper thrust ring
CM061303
Not Available
16
Upper thrust ring
650693
Not Available
17
Steering tube ring nut
0111094
Not Available
18
Washer of the steering
003751
Not Available
19
O-ring 8,73x1,78-viton
224202
£1,01 Unit Price incl. VAT
20
Lower complete rear suspension arm
646556
£290,00 Unit Price incl. VAT
21
Snap ring
006635
Not Available
22
Ball bearing
601345
£13,43 Unit Price incl. VAT
23
Circlip
006647
Not Available
24
Ball bearing
601467
£19,43 Unit Price incl. VAT
25
Upper complete rear suspension arm
646561
£286,18 Unit Price incl. VAT
26
Snap ring
006635
Not Available
27
Ball bearing
601345
£13,43 Unit Price incl. VAT
28
Circlip
006647
Not Available
29
Ball bearing
601467
£19,43 Unit Price incl. VAT
30
screw
030113
Not Available
31
Flat washer
178790
£1,64 Unit Price incl. VAT
32
Bushing
621288
£9,47 Unit Price incl. VAT
33
Washer
709646
Not Available
34
Nut
564878
£1,06 Unit Price incl. VAT
35
Suspension arm connection bracket
646543
Not Available
36
screw
975855
£1,24 Unit Price incl. VAT
37
Spring washer
709047
£0,70 Unit Price incl. VAT
38
Lateral headstock with U.P.
647214
Not Available
39
Steering bearing assy. L.H.
6007705
Not Available
40
Steering tube ring nut
0111094
Not Available
41
Steering bearing assy. R.H.
6471835
Not Available
42
Steering tube ring nut
0111094
Not Available
43
Upper thrust ring
600750
Not Available
44
Cardan joint small cover
647202
£18,20 Unit Price incl. VAT
45
Screw M5x22
828662
£1,33 Unit Price incl. VAT
46
Upper thrust ring
600750
Not Available
47
Brake piping slider
624854
£6,43 Unit Price incl. VAT
48
Screw w/ flange M6x10
969296
£1,27 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
