Engine displacement
400
2
Model
MP3
3
Year
2009
4
Trim
MP3 ie LT - Sport
5
Parts Catalog
Central cover - Footrests
6
Parts Diagram
Parts Catalog
Windshield - Glass
by
Brakes pipes - Calipers
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
Complete central cover
623189
Not Available
1
Complete central cover
623189000C
Not Available
2
Fuel flap
620250000C
£26,00 Unit Price incl. VAT
3
Square
299689
Not Available
4
Self tapping screw
297498
£0,60 Unit Price incl. VAT
5
Maintenance
620491
£3,46 Unit Price incl. VAT
6
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
7
Cam lever
576626
£2,20 Unit Price incl. VAT
8
Spring
575604
£2,70 Unit Price incl. VAT
9
Spring
621507
£7,58 Unit Price incl. VAT
9
Spring
672224
Not Available
10
Flap retainer plate
624465
£7,96 Unit Price incl. VAT
11
Knurled bushing
830056
£1,27 Unit Price incl. VAT
12
Lh mat
623186
£47,82 Unit Price incl. VAT
13
Rh mat
655842
Not Available
14
Left fuse access flap
624458000C
£67,45 Unit Price incl. VAT
14
Left fuse access flap
624458
£42,88 Unit Price incl. VAT
14
Left fuse access flap
62445800EM
Not Available
15
Right fuse access flap
62445900EM
Not Available
15
Right fuse access flap
624459
£42,88 Unit Price incl. VAT
15
Right fuse access flap
624459000C
£67,45 Unit Price incl. VAT
16
screw
015728
Not Available
17
Right central cover
62444500EM
Not Available
17
Right central cover
624445000C
£82,75 Unit Price incl. VAT
17
Right central cover
624445
£50,30 Unit Price incl. VAT
18
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
19
Spring plate
230359
£0,95 Unit Price incl. VAT
20
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
21
Self tapping screw
297498
£0,60 Unit Price incl. VAT
22
Self-tap screw
576189
Not Available
23
Spring plate
CM017410
£0,71 Unit Price incl. VAT
24
RH footrest
655841000C
Not Available
25
LH footrest
653286000C
£64,31 Unit Price incl. VAT
26
Left central cover
62444400EM
£82,19 Unit Price incl. VAT
26
Left central cover
624444
£50,30 Unit Price incl. VAT
26
Left central cover
624444000C
£82,75 Unit Price incl. VAT
27
Spark plug insp. door DX
623254000C
£16,45 Unit Price incl. VAT
28
Screw M6x16
272836
£1,13 Unit Price incl. VAT
29
Washer
297029
£1,27 Unit Price incl. VAT
30
Spring plate
CM017410
£0,71 Unit Price incl. VAT
31
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
31
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
32
Screw m6x30
271891
£1,28 Unit Price incl. VAT
32
Screw metrica
CM179303
£1,27 Unit Price incl. VAT
33
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
33
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
34
Spring plate M6
254485
£1,64 Unit Price incl. VAT
35
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
36
Spring plate
CM017410
£0,71 Unit Price incl. VAT
37
Right rising footrest
655843
£23,96 Unit Price incl. VAT
38
Self tapping screw M6x35
259708
£1,02 Unit Price incl. VAT
39
Spring plate M6
254485
£1,64 Unit Price incl. VAT
40
Screw m6x55
259988
Not Available
41
Spacer
655844
£5,51 Unit Price incl. VAT
42
Spark plug insp. door SX
653287000C
£16,45 Unit Price incl. VAT

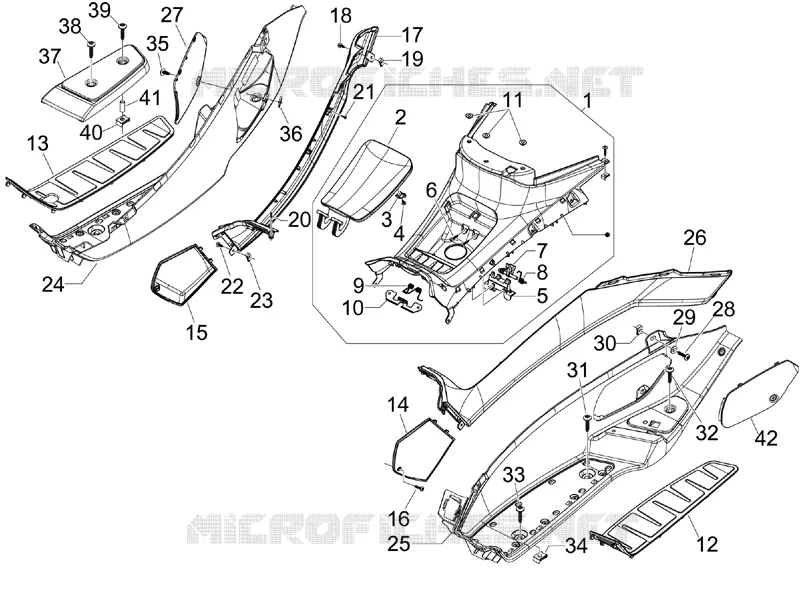

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
