1
Engine displacement
50
2
Model
NRG
3
Year
2005
4
Trim
NRG Power DT
5
Parts Catalog
Fuel tank
6

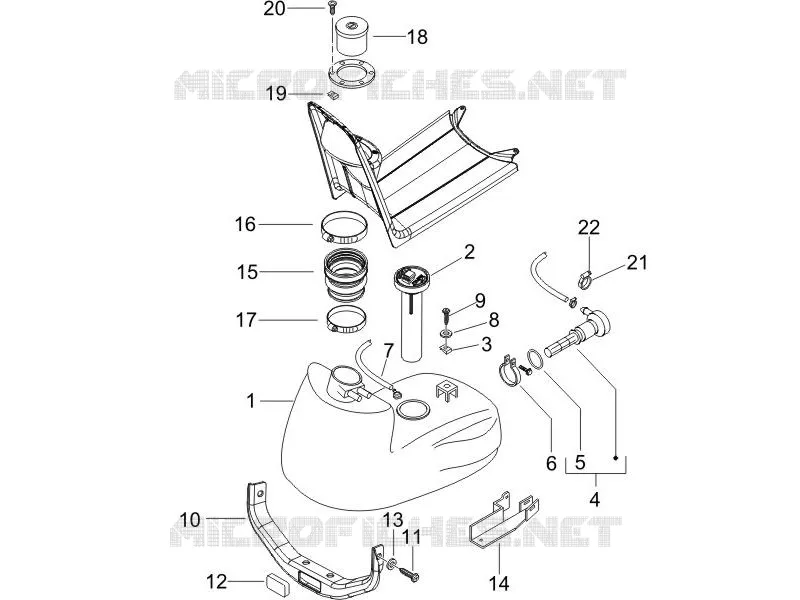

Parts Diagram
Parts Catalog
Crankshaft
by
Fuel tank
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Fuel tank
623508
£176,75 Unit Price incl. VAT
2
Indicator fuel level
CM025703
£98,20 Unit Price incl. VAT
3
Spring plate M6
254485
£1,64 Unit Price incl. VAT
4
Complete coupling
574358
Not Available
5
Gasket
196868
£3,14 Unit Price incl. VAT
6
Hose clamp
577557
Not Available
7
PIPE - CM001405
CM001422
Not Available
8
Spring washer 12x6,4x0,5
006976
Not Available
9
Screw M6x16
272836
£1,13 Unit Price incl. VAT
10
Maintenance
959485
£28,00 Unit Price incl. VAT
11
screw
319532
£1,43 Unit Price incl. VAT
12
Pad
562330
£3,37 Unit Price incl. VAT
13
Spring washer 16x8,2x2,2
834187
£1,04 Unit Price incl. VAT
14
Throttle control cable splitter bracket
959273
£10,10 Unit Price incl. VAT
15
Hose
959230
Not Available
16
Hose clamp
CM001919
£2,35 Unit Price incl. VAT
17
Hose clamp
CM001920
£3,65 Unit Price incl. VAT
18
Fuel tank filler cap
959465
£59,21 Unit Price incl. VAT
19
Spring plate
CM017410
£0,71 Unit Price incl. VAT
20
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
21
Hose clamp
294013
£1,85 Unit Price incl. VAT
22
screw M6x35
414838
£1,27 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
