1
Engine displacement
50
2
Model
NRG
3
Year
2005
4
Trim
NRG Power DT
5
Parts Catalog

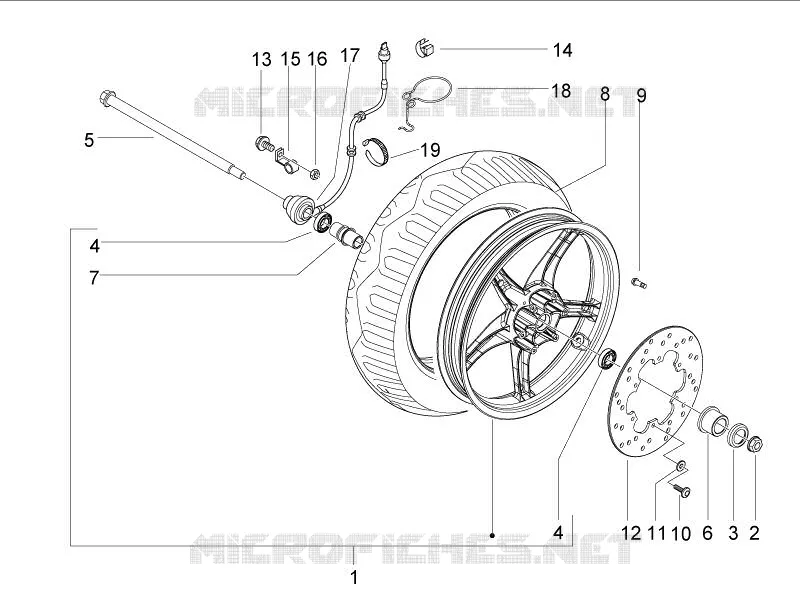

Front wheel
6
Parts Diagram
Parts Catalog
Reduction unit
by
Driving mirror/s
Front wheel
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Wheel
95953600B1
Not Available
1
FRONT WHEEL
959536
Not Available
2
Nut M12
271740
£2,20 Unit Price incl. VAT
3
Guard ring
271744
Not Available
4
Bearing
271745
Not Available
5
Wheel pin
959376
£66,94 Unit Price incl. VAT
6
spacer
959377
Not Available
7
spacer
959378
£17,77 Unit Price incl. VAT
8
Tyre 120/70-13" Vee rubber
959531
Not Available
8
Tyre 120/70-13" Pirelli
959380
Not Available
8
Tyre 120/70-13" Sava
959572
Not Available
9
Tubeless tyre valve
270991
£6,00 Unit Price incl. VAT
10
Hex socket screw M6x20
271147
Not Available
11
Washer 6,4x10x0,7
274706
£0,94 Unit Price incl. VAT
12
Brake disc
564573
Not Available
13
Screw w/ flange M6x25
414837
Not Available
14
Spring
179013
£5,17 Unit Price incl. VAT
15
Sheet edge spring
CM013203
£2,45 Unit Price incl. VAT
16
Self locking nut M6
241936
£0,74 Unit Price incl. VAT
17
Speedometer encoder
58117R
Not Available
18
spring
959532
Not Available
18
Hose clamp
639426
£1,94 Unit Price incl. VAT
19
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
