Engine displacement
125
2
Model
FLY
3
Year
2006
4
Trim
Fly 4T
5
Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Reduction unit
by
Selectors - Switches - Buttons
Swinging arm
1
2
3
4
4
5
6
7
7
8
9
10
11
14
16
18
19
20
21
22
23
24
25
1
Chassis side swinging arm
597495
Not Available
2
Spacer
CM067802
£24,29 Unit Price incl. VAT
3
Roller cage
597374
Not Available
4
Hex screw M10x202
271807
£10,52 Unit Price incl. VAT
5
Complete swinging arm on engine side
601744
£74,32 Unit Price incl. VAT
6
Self locking nut M10
231370
£1,13 Unit Price incl. VAT
7
Self locking nut M10
232108
Not Available
8
Circlip
006416
Not Available
9
Bush
273460
£0,98 Unit Price incl. VAT
10
Silent-block
272750
£44,05 Unit Price incl. VAT
11
Bracket
601620
£109,10 Unit Price incl. VAT
14
Spacer L=183 mm
CM067801
£17,98 Unit Price incl. VAT
16
Spring
564813
£5,32 Unit Price incl. VAT
18
Flat washer 16x6,5x1,5
013880
Not Available
19
Spring washer 6,4x11x0,5
006966
Not Available
20
Pin
600309
£6,58 Unit Price incl. VAT
21
Roller cage
597374
Not Available
22
Hex socket screw M6x20
709674
£1,27 Unit Price incl. VAT
23
Hex screw M10x245
563977
£15,49 Unit Price incl. VAT
24
screw
263381
£0,53 Unit Price incl. VAT
25
Nut
272176
£0,98 Unit Price incl. VAT

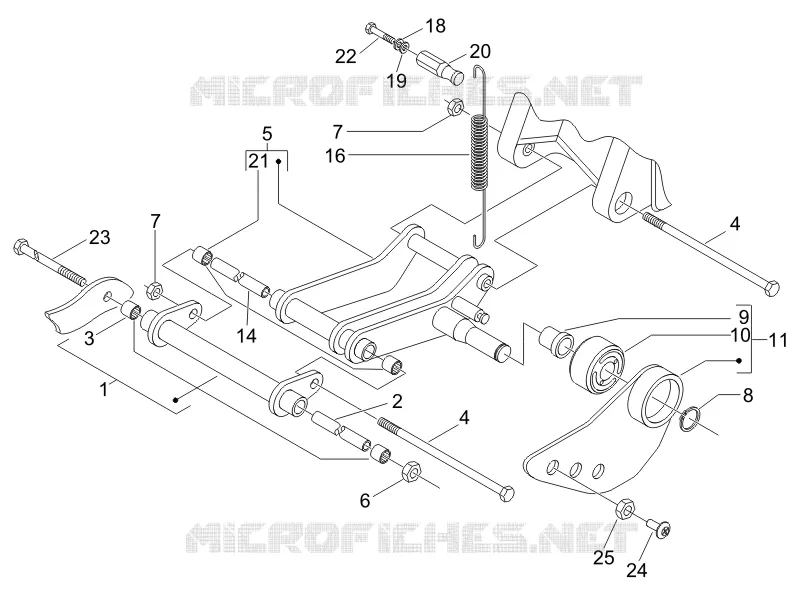

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
