1
Rh brake caliper
CM068316
£262,21 Unit Price incl. VAT
2
Brake pads couple
668017
£71,57 Unit Price incl. VAT
3
Brake supp. plate pin
666139
£12,74 Unit Price incl. VAT
4
Lh brake caliper
CM068317
£262,21 Unit Price incl. VAT
5
Brake pads couple
668021
£75,14 Unit Price incl. VAT
6
Brake supp. plate pin
666139
£12,74 Unit Price incl. VAT
7
Torx convex big end screw
651297
£1,02 Unit Price incl. VAT
8
Spring washer
709047
£0,70 Unit Price incl. VAT
9
Hydraulic brake pipe
668228
Not Available
10
Pressure adjusting valve
CM086101
£117,29 Unit Price incl. VAT
11
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
12
Spring washer 12x6,4x0,5
006976
Not Available
13
Oil pipe screw *
597633
£13,25 Unit Price incl. VAT
14
Gasket
127927
£1,04 Unit Price incl. VAT
15
Brake pipe (valve-caliper L.H.)
668229
£63,07 Unit Price incl. VAT
16
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
17
Brake pipe (valve-caliper)
668231
£60,73 Unit Price incl. VAT
18
Brake pipe (valve-caliper)
667799
Not Available
18
Brake pipe (valve-caliper)
668722
Not Available
19
Brake caliper
CM068318
Not Available
20
(Heng Tong) Brake pads couple
665842
£36,64 Unit Price incl. VAT
21
Brake supp. plate pin
666139
£12,74 Unit Price incl. VAT
22
Hex screw
668136
£2,90 Unit Price incl. VAT
23
Washer
709646
Not Available
24
Hose clamp
666047
£3,85 Unit Price incl. VAT
25
Screw w/ flange M6x16
434541
Not Available
26
Spring
179013
£5,17 Unit Price incl. VAT
27
Spring
CM013201
£0,76 Unit Price incl. VAT
28
Hose clamp
668866
£10,26 Unit Price incl. VAT
29
Hose clamp
668448
£7,28 Unit Price incl. VAT
30
Hose clamp
623743
Not Available
31
Non return spring l=27
CM006904
£2,32 Unit Price incl. VAT
31
Non return spring
CM006902
£1,55 Unit Price incl. VAT
32
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
33
Pin connection cover
672204
£9,61 Unit Price incl. VAT
34
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
35
Flat washer 4,2x12x1
013763
Not Available
36
Hose clamp
667156
£4,82 Unit Price incl. VAT

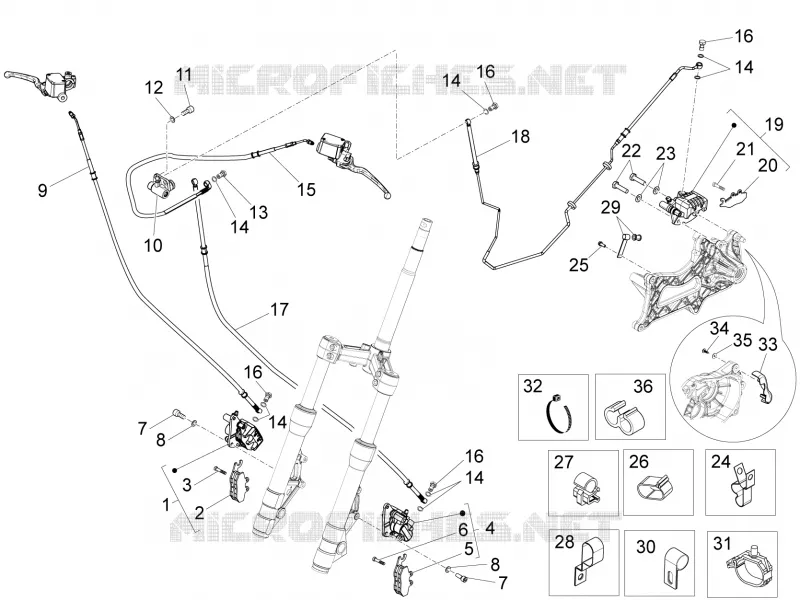

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
