Engine displacement
125
2
Model
X10
3
Year
2014
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Crankcase cover - Crankcase cooling
6

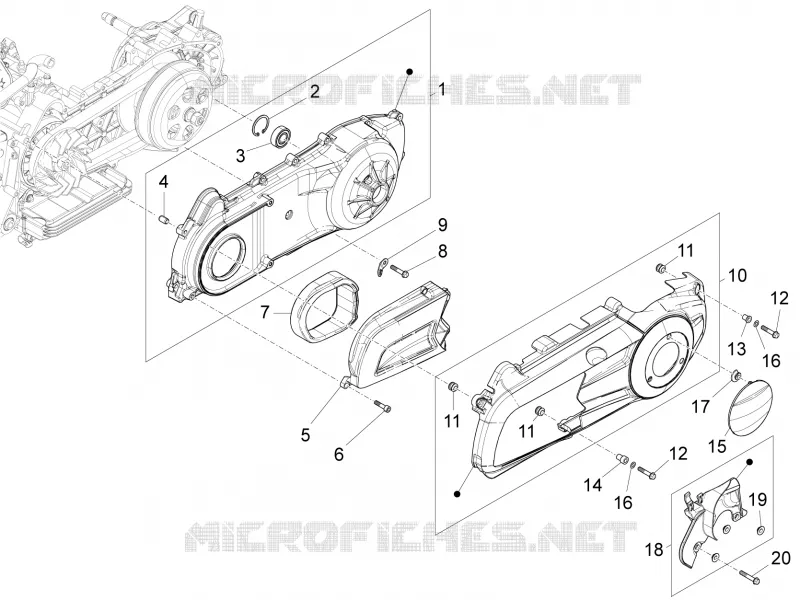

Parts Diagram
Parts Catalog
Engine, assembly
by
Locks
Crankcase cover - Crankcase cooling
1
2
3
4
5
6
7
8
9
10
11
11
11
12
12
13
14
15
16
16
17
18
19
20
1
Complete transmission cover
8778435
Not Available
2
Snap ring
006635
Not Available
3
Bearing
478985
Not Available
4
Pin 6,5x9,5x15
239388
Not Available
5
Cooling Cover
876075
Not Available
6
screw M6x25
018553
Not Available
7
Filtering element
875701
£5,32 Unit Price incl. VAT
8
Screw w/ flange M6x30
289731
Not Available
9
Hose clamp
844964
£1,99 Unit Price incl. VAT
10
Transmission soundproofing cover
877845
Not Available
11
Pad
431578
£1,33 Unit Price incl. VAT
12
Screw w/ flange M6x50
B016775
£1,27 Unit Price incl. VAT
12
screw M6x50
430207
Not Available
13
Spacer
431577
£3,55 Unit Price incl. VAT
14
Spacer
876413
£4,02 Unit Price incl. VAT
15
Transmission cover
CM155109
Not Available
16
Washer 6.4x13x1.5
013777
Not Available
17
Retainer buffer
871458
£1,72 Unit Price incl. VAT
18
Duct bulkhead
672115
£32,88 Unit Price incl. VAT
19
Knurled bushing
830056
£1,27 Unit Price incl. VAT
20
screw M6x35
414838
£1,27 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
