Parts Catalog
Front covers - Mudflaps
6
Parts Diagram
Parts Catalog
Brakes pipes - Calipers
by
Silencer
Front covers - Mudflaps
1
2
3
4
5
6
7
7
8
8
9
9
10
10
11
12
13
13
14
14
14
15
15
16
17
18
19
20
21
22
22
23
23
24
25
25
25
25
26
27
28
29
1
Rear dashboard
67343000H7
Not Available
2
Left dashboard door
67343700MA
Not Available
2
Left dashboard door
673437000C
£21,00 Unit Price incl. VAT
3
Right dashboard door
67343800MA
Not Available
3
Right dashboard door
673438000C
£21,00 Unit Price incl. VAT
4
Complete Rear Cover
1B0008385
£14,75 Unit Price incl. VAT
4
Complete Rear Cover
674033
£12,02 Unit Price incl. VAT
5
Lh sound-proofing panel
675405
£9,89 Unit Price incl. VAT
6
Right soundproof
675406
£9,89 Unit Price incl. VAT
7
U-bolt
674683
£7,28 Unit Price incl. VAT
8
Spring
975685
£1,43 Unit Price incl. VAT
9
Door fulcrum pin
675031
£5,99 Unit Price incl. VAT
10
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
11
LH support
674225
£16,69 Unit Price incl. VAT
12
RH support
674226
£16,69 Unit Price incl. VAT
13
Self-tap screw
CM178604
£1,24 Unit Price incl. VAT
14
Spring plate
CM017410
£0,71 Unit Price incl. VAT
15
Self tapping screw 4,2x16
CM178606
£9,08 Unit Price incl. VAT
16
Rear dashboard cover
673439
£69,73 Unit Price incl. VAT
16
Rear dashboard cover
1B000144
Not Available
17
Dashboard cover
67468000H7
£13,64 Unit Price incl. VAT
18
Dashboard left cover
67343100H7
£18,41 Unit Price incl. VAT
19
Right dashboard cover
67343200H7
£18,41 Unit Price incl. VAT
20
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
21
Spring plate
CM017410
£0,71 Unit Price incl. VAT
22
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
23
Self tapping screw
297498
£0,60 Unit Price incl. VAT
24
Self-tap screw
CM178604
£1,24 Unit Price incl. VAT
25
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
26
Spring plate
CM017410
£0,71 Unit Price incl. VAT
27
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
28
Left inspection hatch
67422300H7
£13,30 Unit Price incl. VAT
29
Right inspection hatch
67422400H7
£13,30 Unit Price incl. VAT

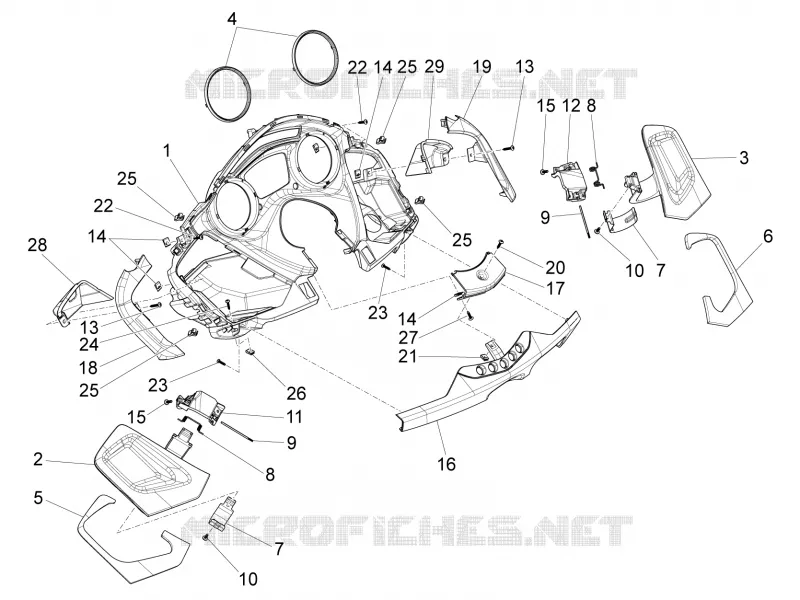

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
