Parts Catalog
Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Main cable harness
by
Oil pump
Front glove-box - Knee-guard panel
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
14
15
16
17
18
19
20
21
21
22
22
22
22
23
24
25
26
27
28
29
30
31
1
Front glove comp.
67342600H7
Not Available
2
Top case door
673427000C
£58,12 Unit Price incl. VAT
2
Top case door
67342700MA
£58,12 Unit Price incl. VAT
3
Glove compartment door handle
1B000839
Not Available
3
Glove compartment door handle
1B0008396
£62,05 Unit Price incl. VAT
4
Self tapping screw
297498
£0,60 Unit Price incl. VAT
5
Flap packing
CM006313
Not Available
6
Counter flap
673428000C
£59,00 Unit Price incl. VAT
7
Pawl
575607
£3,14 Unit Price incl. VAT
8
Square
252420
£3,88 Unit Price incl. VAT
9
Door fixing bracket
257614
£1,72 Unit Price incl. VAT
10
Lever
675401
£7,39 Unit Price incl. VAT
11
cover
67468100H7
£12,32 Unit Price incl. VAT
12
Pouch bag
67468200H7
£9,79 Unit Price incl. VAT
13
Spring
577005
Not Available
14
Self tapping screw
297498
£0,60 Unit Price incl. VAT
15
Pin
575062
£3,35 Unit Price incl. VAT
16
Spring
577399
£7,40 Unit Price incl. VAT
17
Catch spring
299693
£0,70 Unit Price incl. VAT
18
Insp. door
575551
£9,40 Unit Price incl. VAT
19
Pin
270147
Not Available
20
Spring plate
CM017410
£0,71 Unit Price incl. VAT
21
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
22
Spring plate
CM017410
£0,71 Unit Price incl. VAT
23
Expansion plug
157716
£0,16 Unit Price incl. VAT
24
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
25
Spring plate M6
254485
£1,64 Unit Price incl. VAT
26
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
27
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
28
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
29
Lock lever
673999
£10,08 Unit Price incl. VAT
30
Special screw
299972
£1,14 Unit Price incl. VAT
31
Self locking nut
577620
£0,97 Unit Price incl. VAT

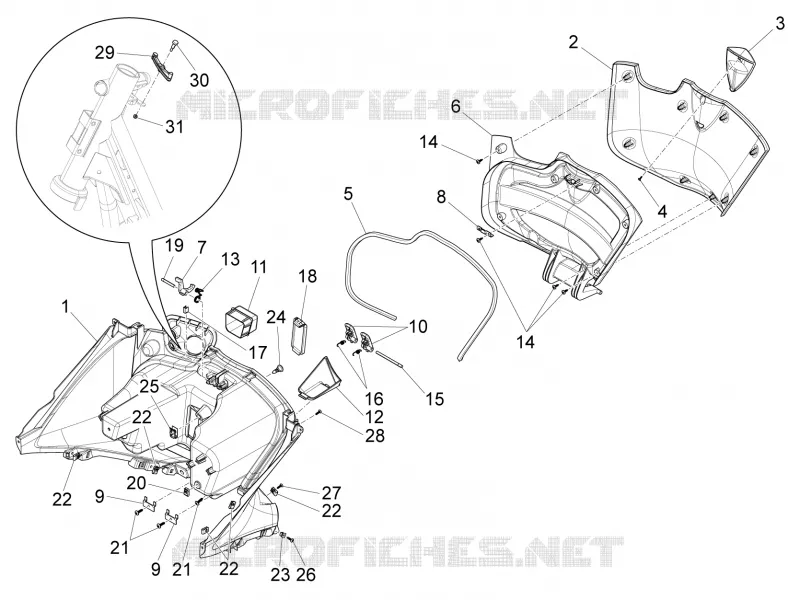

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
