Engine displacement
125
2
Model
X10
3
Year
2015
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Head unit - Valve
6
Parts Diagram
Parts Catalog
Silencer
by
Head unit - Valve
1
2
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Cylinder head assembly
B019386
Not Available
1
Cylinder head assembly
B0161175
Not Available
2
Stud bolt M7
435629
£1,87 Unit Price incl. VAT
3
Exhaust pipe gasket
480853
£5,16 Unit Price incl. VAT
4
Exhaust valve
873114
Not Available
5
Intake valve
872999
Not Available
6
Lower cap
483711
£2,12 Unit Price incl. VAT
7
Valve gasket ring
436438
£11,03 Unit Price incl. VAT
8
Valve spring
875140
£16,14 Unit Price incl. VAT
9
Upper cap
483914
£5,71 Unit Price incl. VAT
10
Valve half-cone
285846
£1,98 Unit Price incl. VAT
11
Spacer washer 0,4 mm
CM159801
£2,42 Unit Price incl. VAT
11
Spacer washer 1,2 mm
CM159803
£2,42 Unit Price incl. VAT
11
Spacer washer 0,8 mm
CM159802
£2,42 Unit Price incl. VAT
12
Plug
877432
Not Available
13
Screw w/ flange
485603
£1,96 Unit Price incl. VAT
14
Cap nut
832870
£2,58 Unit Price incl. VAT
15
Cylinder head gasket 0,3 mm
876625
£17,09 Unit Price incl. VAT
16
Hex socket screw M5x20
845753
Not Available
17
Thermostat cover
B018147
£64,54 Unit Price incl. VAT
17
Thermostat cover
B013477
Not Available
18
Bleed screw
845605
£15,49 Unit Price incl. VAT
19
Bleed valve cap
063435
Not Available
20
Gasket
297027
£1,51 Unit Price incl. VAT
21
Temperature gauge
640485
Not Available
22
Thermostat
82831R
Not Available

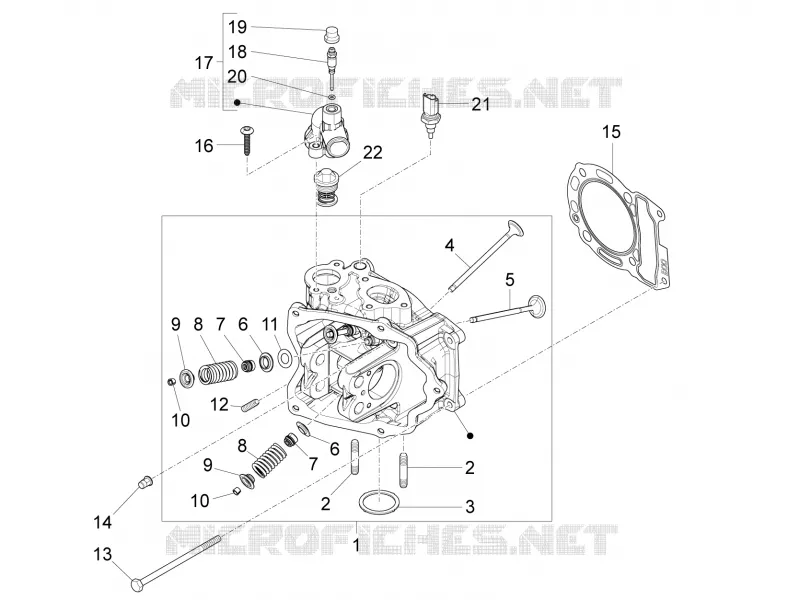

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
