Engine displacement
125
2
Model
X10
3
Year
2013
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Rear cover - Splash guard
6

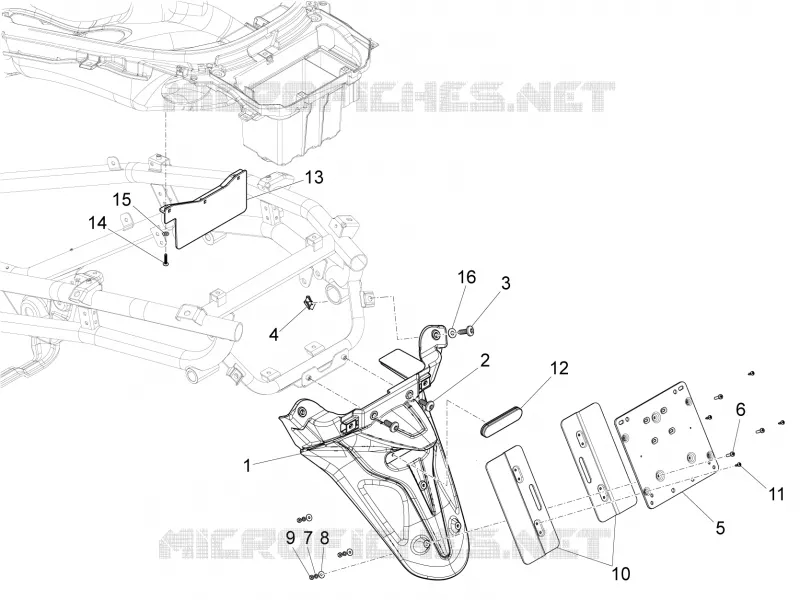

Parts Diagram
Parts Catalog
Driven pulley
by
Crankcase
Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Rear splash guard
67345900H7
£56,84 Unit Price incl. VAT
2
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
3
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
4
Spring plate M6
254485
£1,64 Unit Price incl. VAT
5
Number plate holder
584884
£31,69 Unit Price incl. VAT
6
screw M4x14
018591
Not Available
7
Flat washer 4,2x12x1
013763
Not Available
8
Flat washer 4,2x7,6x0,9
016404
Not Available
9
Nut M4
020104
Not Available
10
Number-plate extension
584877
£5,88 Unit Price incl. VAT
11
Plug screw
268596
£0,62 Unit Price incl. VAT
12
Rear retroreflector
58233R
Not Available
13
Engine splash guard
674243
£14,82 Unit Price incl. VAT
14
Self tapping screw
297498
£0,60 Unit Price incl. VAT
15
Flat washer 4,2x12x1
013763
Not Available
16
Spring washer
709047
£0,70 Unit Price incl. VAT
