Engine displacement
125
2
Model
X10
3
Year
2012
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Rear headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
by
Reduction unit
Rear headlamps - Turn signal lamps
1
2
3
4
5
5
6
6
7
7
8
8
9
10
11
12
1
Lh rear light
642918
£233,22 Unit Price incl. VAT
2
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
3
Rh rear light
642917
£233,22 Unit Price incl. VAT
4
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
5
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
6
Spring plate M6
254485
£1,64 Unit Price incl. VAT
7
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
8
Spring plate
CM017410
£0,71 Unit Price incl. VAT
9
Rear licence plate light
642919
Not Available
10
Lamp 12V-5W
292022
Not Available
11
screw 3,5x16
015859
Not Available
12
Spring plate
CM017403
£0,90 Unit Price incl. VAT

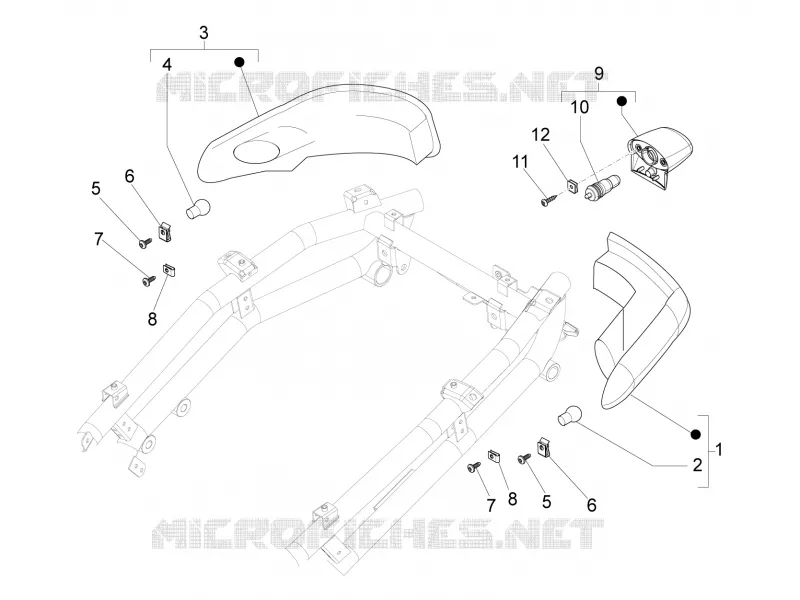

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
