Engine displacement
125
2
Model
X10
3
Year
2014
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Reduction unit
6

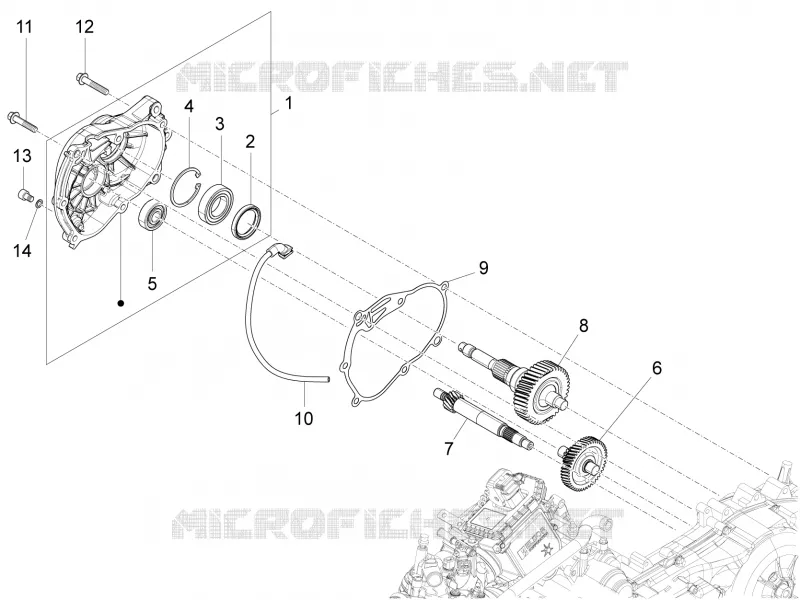

Parts Diagram
Parts Catalog
Rear headlamps - Turn signal lamps
by
Wheel huosing - Mudguard
Reduction unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Side cover
8481875
Not Available
2
Oil seal 38x50x7
873351
Not Available
3
Radial bearing 30x55x13
83034R
Not Available
4
Circlip
829206
£1,36 Unit Price incl. VAT
5
Radial ball bearing 15x42x13
83018R
£10,26 Unit Price incl. VAT
6
Transmission shaft
8753065
£81,91 Unit Price incl. VAT
7
Driven pulley shaft Z=14
8738755
£224,71 Unit Price incl. VAT
8
Rear wheel axle with U.P.
B0168945
£390,59 Unit Price incl. VAT
8
Rear wheel axle
B0160795
Not Available
9
Gasket
847931
£7,80 Unit Price incl. VAT
10
Reduction unit breather pipe assembly
CM162201
Not Available
11
Screw w/ flange M8x40
B016806
£1,24 Unit Price incl. VAT
12
Screw w/ flange M8x45
B016805
£1,27 Unit Price incl. VAT
12
Screw w/ flange M8x45
487211
Not Available
13
Hex socket screw M8x12
269755
£1,36 Unit Price incl. VAT
14
Washer 8.2x12x1
485703
£0,96 Unit Price incl. VAT
