Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Electrical system components
by
Flywheel magneto cover - Oil filter
Swinging arm
1
2
2
3
3
4
5
5
6
6
7
8
9
10
11
11
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
1
Chassis side swinging arm
666950
Not Available
2
Bush
597317
£1,84 Unit Price incl. VAT
3
Roller cage
597374
Not Available
4
Engine side swinging arm
668190
Not Available
4
Engine side swinging arm
58648R
Not Available
5
Bush
597317
£1,84 Unit Price incl. VAT
6
Roller cage
597374
Not Available
7
Hex screw M10x225
667827
£11,90 Unit Price incl. VAT
8
Spacer L=235.5
CM067809
£13,98 Unit Price incl. VAT
9
Threaded bush
668564
£31,56 Unit Price incl. VAT
10
Nut m22x2 h=8
564611
£4,70 Unit Price incl. VAT
11
Self locking nut M10
002440
Not Available
12
Hex screw
667441
£13,12 Unit Price incl. VAT
13
Spacer L=198
CM067807
£14,09 Unit Price incl. VAT
14
screw
597081
£13,28 Unit Price incl. VAT
15
Flat washer
178790
£1,64 Unit Price incl. VAT
16
Hex socket screw
597893
£1,24 Unit Price incl. VAT
17
Self locking nut M10
002440
Not Available
18
Complete silent block support bracket
668199
£147,50 Unit Price incl. VAT
19
Silent-block
272750
£44,05 Unit Price incl. VAT
20
Bush
273460
£0,98 Unit Price incl. VAT
21
Circlip
006416
Not Available
22
Silent-block
599250
£15,38 Unit Price incl. VAT
23
Spring
667026
£9,58 Unit Price incl. VAT
24
Spacer
668718
£3,43 Unit Price incl. VAT

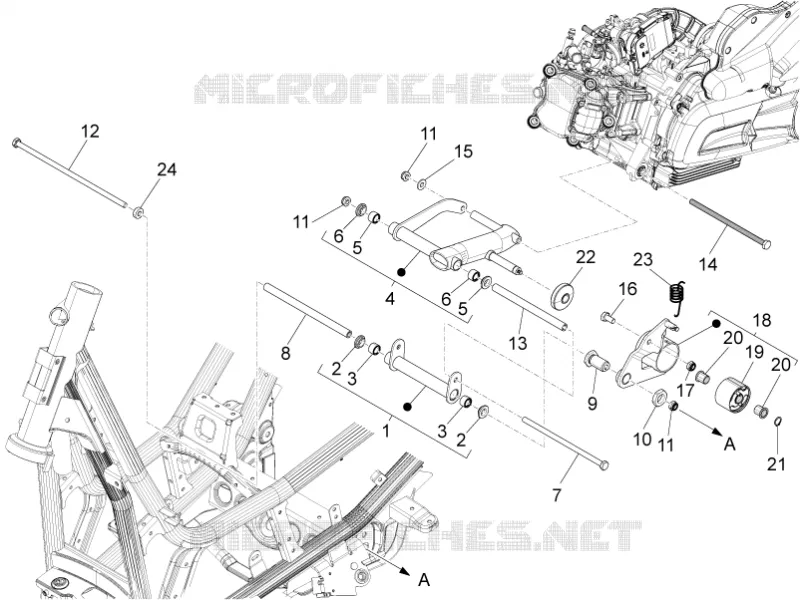

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
