1
Engine displacement
125
2
Model
X10
3
Year
2013
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog

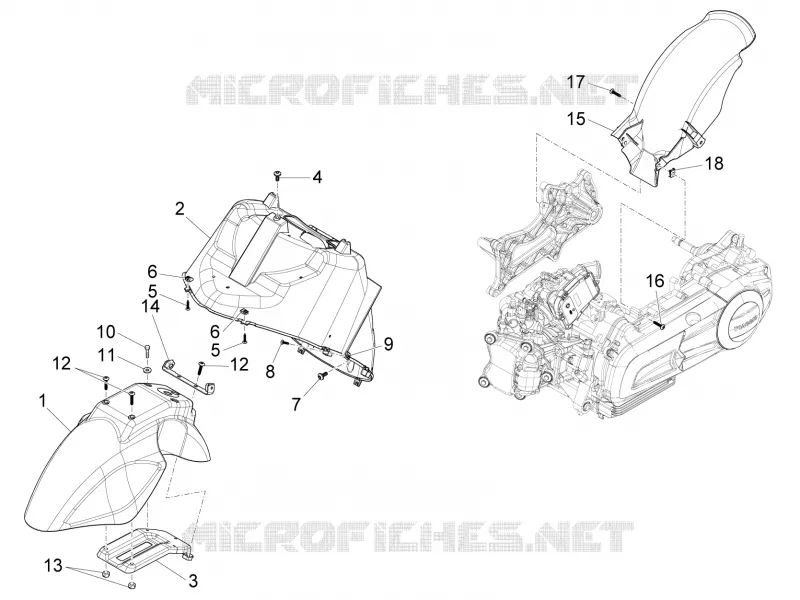

Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Reduction unit
by
Driving mirror/s
Wheel huosing - Mudguard
1
2
3
4
5
5
6
6
7
8
9
10
11
12
12
13
14
15
16
17
18
1
Front mudguard
67344400XN2
£187,37 Unit Price incl. VAT
1
Front mudguard
67344400BU
Not Available
1
Front mudguard
67344400HC
Not Available
1
Front mudguard
67344400M8
Not Available
1
Front mudguard
67344400NO
Not Available
1
Front mudguard
673444
£147,74 Unit Price incl. VAT
1
Front mudguard
67344400EV
£187,37 Unit Price incl. VAT
1
Front mudguard
67344400H2
£187,37 Unit Price incl. VAT
1
Front mudguard
67344400BT
Not Available
1
Front mudguard
67344400DE
Not Available
2
Wheel compartment
673423
£92,03 Unit Price incl. VAT
3
Mudguard fixing bracket
674871
£22,72 Unit Price incl. VAT
4
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
5
Self-tap screw
CM178604
£1,24 Unit Price incl. VAT
6
Spring plate
CM017410
£0,71 Unit Price incl. VAT
7
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
8
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
9
Spring plate
CM017410
£0,71 Unit Price incl. VAT
10
Screw m6x12
031086
Not Available
11
Spring washer 6,4x11x0,5
006966
Not Available
12
screw
CM179202
£1,27 Unit Price incl. VAT
13
Self locking nut M6
195482
£1,27 Unit Price incl. VAT
14
Piping coupling bracket
668220
£14,56 Unit Price incl. VAT
15
Rear mudguard
674218
£53,80 Unit Price incl. VAT
16
Screw metrica
CM179303
£1,27 Unit Price incl. VAT
17
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
18
Spring plate M6
254485
£1,64 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
