1
Engine displacement
350
2
Model
X10
3
Year
2013
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Side cover - Spoiler
6

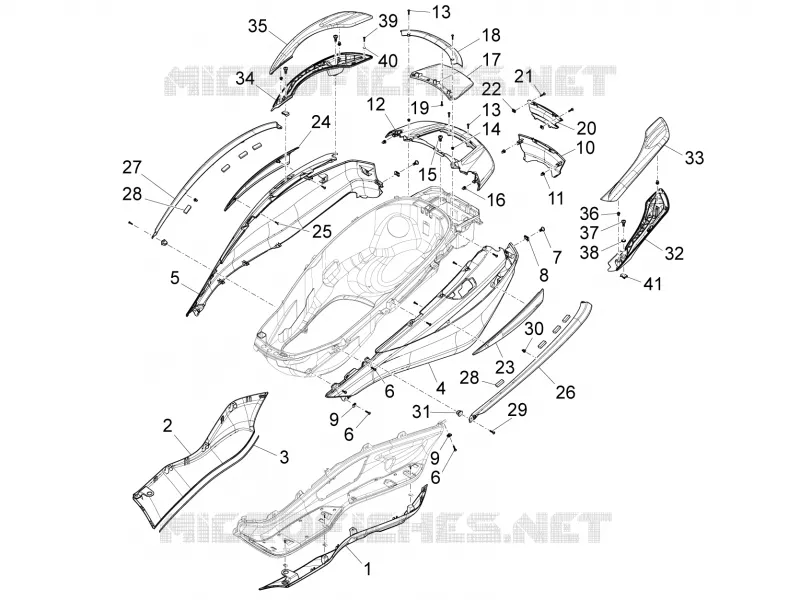

Parts Diagram
Parts Catalog
Front covers - Mudflaps
by
Flywheel magneto cover - Oil filter
Side cover - Spoiler
1
2
3
4
5
6
6
6
7
8
9
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
1
Left spoiler
67345100DO
Not Available
1
Left spoiler
673451
Not Available
1
Left spoiler
67345100DE
Not Available
1
Left spoiler
67345100NN
Not Available
1
Left spoiler
67345100MC
Not Available
1
Left spoiler
67345100M8
Not Available
1
Left spoiler
67345100XN2
Not Available
1
Left spoiler
67345100BT
Not Available
1
Left spoiler
67345100EV
Not Available
2
Right spoiler
67345200DE
Not Available
2
Right spoiler
67345200MC
Not Available
2
Right spoiler
67345200BT
Not Available
2
Right spoiler
673452
£144,10 Unit Price incl. VAT
2
Right spoiler
67345200DO
Not Available
2
Right spoiler
67345200NN
Not Available
2
Right spoiler
67345200M8
Not Available
2
Right spoiler
67345200XN2
Not Available
2
Right spoiler
67345200EV
Not Available
3
Gasket L=120 D = 7
CM017718
£4,57 Unit Price incl. VAT
4
Rear body side l.h.
67345500EV
Not Available
4
Rear body side l.h.
67345500BT
Not Available
4
Rear body side l.h.
67345500DO
Not Available
4
Rear body side l.h.
67345500MC
Not Available
4
Rear body side l.h.
67345500DE
Not Available
4
Rear body side l.h.
67345500XN2
Not Available
4
Rear body side l.h.
67502700BT
Not Available
4
Rear body side l.h.
673455
Not Available
4
Rear body side l.h.
67345500NN
Not Available
4
Rear body side l.h.
67345500M8
Not Available
5
Rear body side r.h.
67345600DO
£108,26 Unit Price incl. VAT
5
Rear body side r.h.
67345600M8
Not Available
5
Rear body side r.h.
67345600BT
Not Available
5
Rear body side r.h.
673456
£151,15 Unit Price incl. VAT
5
Rear body side r.h.
67345600DE
Not Available
5
Rear body side r.h.
67345600EV
Not Available
5
Rear body side r.h.
67345600XN2
Not Available
5
Rear body side r.h.
67345600NN
£237,82 Unit Price incl. VAT
5
Rear body side r.h.
67345600MC
Not Available
6
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
7
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
8
Spring plate M6
254485
£1,64 Unit Price incl. VAT
9
Spring plate
CM017410
£0,71 Unit Price incl. VAT
10
Lower rear cover
67345800DE
£52,70 Unit Price incl. VAT
10
Lower rear cover
67345800BT
Not Available
10
Lower rear cover
67345800NN
Not Available
10
Lower rear cover
67345800M8
Not Available
10
Lower rear cover
673458
Not Available
10
Lower rear cover
67345800DO
£52,70 Unit Price incl. VAT
10
Lower rear cover
67345800EV
Not Available
10
Lower rear cover
67345800XN2
Not Available
10
Lower rear cover
67345800MC
Not Available
11
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
12
Upper rear cover
67486500NN
£80,87 Unit Price incl. VAT
12
Upper rear cover
67486500DE
£80,87 Unit Price incl. VAT
12
Upper rear cover
67486500XN2
£38,83 Unit Price incl. VAT
12
Upper rear cover
674865
£81,41 Unit Price incl. VAT
12
Upper rear cover
67486500BT
£43,55 Unit Price incl. VAT
12
Upper rear cover
67486500EV
Not Available
12
Upper rear cover
67486500M8
£80,87 Unit Price incl. VAT
12
Upper rear cover
67486500DO
£80,87 Unit Price incl. VAT
12
Upper rear cover
67486500MC
Not Available
13
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
14
Expansion plug
199190
£0,17 Unit Price incl. VAT
15
screw
CM179202
£1,27 Unit Price incl. VAT
16
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
17
Battery door
67486700XN2
£121,81 Unit Price incl. VAT
17
Battery door
67486700MC
£121,81 Unit Price incl. VAT
17
Battery door
67486700NN
£121,81 Unit Price incl. VAT
17
Battery door
67486700DE
£32,94 Unit Price incl. VAT
17
Battery door
674867
£95,35 Unit Price incl. VAT
17
Battery door
67486700M8
Not Available
17
Battery door
67486700DO
£121,81 Unit Price incl. VAT
17
Battery door
67486700EV
£31,78 Unit Price incl. VAT
17
Battery door
67486700BT
£121,81 Unit Price incl. VAT
18
Central rear frame
674866
£47,84 Unit Price incl. VAT
19
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT
20
Central rear protection
673460
£83,20 Unit Price incl. VAT
21
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
22
Spring plate
CM017410
£0,71 Unit Price incl. VAT
23
Left rear lateral protection
673461
£103,63 Unit Price incl. VAT
24
Right rear side protection
673462
£103,63 Unit Price incl. VAT
25
Self tapping screw
297498
£0,60 Unit Price incl. VAT
26
Left lateral frame
673465
Not Available
27
Right lateral frame
673464
Not Available
28
Pad
675517
£0,79 Unit Price incl. VAT
29
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
30
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
31
Expansion plug
199190
£0,17 Unit Price incl. VAT
32
Left lower rear handle
67421400EV
£91,99 Unit Price incl. VAT
32
Left lower rear handle
67421400DE
Not Available
32
Left lower rear handle
674214
£80,65 Unit Price incl. VAT
32
Left lower rear handle
67421400NN
£91,99 Unit Price incl. VAT
32
Left lower rear handle
67421400M8
Not Available
32
Left lower rear handle
67421400DO
£91,36 Unit Price incl. VAT
32
Left lower rear handle
67421400XN2
£91,99 Unit Price incl. VAT
32
Left lower rear handle
67421400BT
£91,99 Unit Price incl. VAT
32
Left lower rear handle
67421400MC
£91,36 Unit Price incl. VAT
33
Left upper rear handle
67421300BT
Not Available
33
Left upper rear handle
67421300EV
£73,48 Unit Price incl. VAT
33
Left upper rear handle
67421300M8
Not Available
33
Left upper rear handle
674213
Not Available
33
Left upper rear handle
67421300DE
Not Available
33
Left upper rear handle
67421300DO
£73,48 Unit Price incl. VAT
33
Left upper rear handle
67421300MC
£73,48 Unit Price incl. VAT
33
Left upper rear handle
67421300NN
Not Available
33
Left upper rear handle
67421300XN2
Not Available
34
Right lower rear handle
67421600DE
Not Available
34
Right lower rear handle
67421600XN2
Not Available
34
Right lower rear handle
67421600DO
£91,36 Unit Price incl. VAT
34
Right lower rear handle
67421600MC
£91,36 Unit Price incl. VAT
34
Right lower rear handle
67421600EV
£91,99 Unit Price incl. VAT
34
Right lower rear handle
674216
£80,65 Unit Price incl. VAT
34
Right lower rear handle
67421600NN
£91,36 Unit Price incl. VAT
34
Right lower rear handle
67421600BT
£91,36 Unit Price incl. VAT
34
Right lower rear handle
67421600M8
Not Available
35
Right upper rear handle
67421500M8
£73,48 Unit Price incl. VAT
35
Right upper rear handle
67421500DO
£73,48 Unit Price incl. VAT
35
Right upper rear handle
67421500BT
£73,48 Unit Price incl. VAT
35
Right upper rear handle
67421500EV
£73,48 Unit Price incl. VAT
35
Right upper rear handle
674215
Not Available
35
Right upper rear handle
67421500DE
Not Available
35
Right upper rear handle
67421500MC
£73,48 Unit Price incl. VAT
35
Right upper rear handle
67421500NN
£73,48 Unit Price incl. VAT
35
Right upper rear handle
67421500XN2
Not Available
36
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
37
Torx Screw
656894
£1,39 Unit Price incl. VAT
38
Notched washer 14x8,3x1,8
012540
Not Available
39
Self tapping screw
297498
£0,60 Unit Price incl. VAT
40
Flat washer 15x8,4x1,5
003058
Not Available
41
Spring plate M8
575268
£2,24 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for X10 4T 4V I.E. E3

Stand/s

Stand/s

for X10 4T 4V I.E. E3 from 2013

Remote control switches - Battery - Horn

Remote control switches - Battery - Horn

for X10 4T 4V I.E. E3 from 2013

Locks

Locks

for X10 4T 4V I.E. E3 from 2013

Transmissions

Transmissions

for X10 4T 4V I.E. E3 from 2013

Brakes pipes - Calipers

Brakes pipes - Calipers

for X10 4T 4V I.E. E3 from 2013

Brakes pipes - Calipers (ABS)

Brakes pipes - Calipers (ABS)

for X10 4T 4V I.E. E3 from 2013

Cooling system

Cooling system

for X10 4T 4V I.E. E3 from 2013

Crankcase

Crankcase

for X10 4T 4V I.E. E3 from 2013

Plates - Emblems

Plates - Emblems

for X10 4T 4V I.E. E3 from 2013

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

for X10 4T 4V I.E. E3 from 2013

Main cable harness

Main cable harness

for X10 4T 4V I.E. E3 from 2013

Wheel huosing - Mudguard

Wheel huosing - Mudguard

for X10 4T 4V I.E. E3 from 2013

Saddle/seats

Saddle/seats

for X10 4T 4V I.E. E3 from 2013

Engine, assembly

Engine, assembly

for X10 4T 4V I.E. E3 from 2013

Handlebars - Master cil.

Handlebars - Master cil.

for X10 4T 4V I.E. E3 from 2013

Driven pulley

Driven pulley

for X10 4T 4V I.E. E3 from 2013

Cooler pump

Cooler pump

for X10 4T 4V I.E. E3 from 2013

Cylinder-piston-wrist pin unit

Cylinder-piston-wrist pin unit

for X10 4T 4V I.E. E3 from 2013

Electrical system components

Electrical system components

for X10 4T 4V I.E. E3 from 2013

Silencer

Silencer

for X10 4T 4V I.E. E3 from 2013

Front shield

Front shield

for X10 4T 4V I.E. E3 from 2013

Rear suspension - Shock absorber/s

Rear suspension - Shock absorber/s

for X10 4T 4V I.E. E3 from 2013

Fuel tank

Fuel tank

for X10 4T 4V I.E. E3 from 2013

Air filter

Air filter

for X10 4T 4V I.E. E3 from 2013

Rear cover - Splash guard

Rear cover - Splash guard

for X10 4T 4V I.E. E3 from 2013

Fork/steering tube - Steering bearing unit

Fork/steering tube - Steering bearing unit

for X10 4T 4V I.E. E3 from 2013

Selectors - Switches - Buttons

Selectors - Switches - Buttons

for X10 4T 4V I.E. E3 from 2013

Reduction unit

Reduction unit

for X10 4T 4V I.E. E3 from 2013

Rear wheel

Rear wheel

for X10 4T 4V I.E. E3 from 2013

Driving pulley

Driving pulley

for X10 4T 4V I.E. E3 from 2013

Head unit - Valve

Head unit - Valve

for X10 4T 4V I.E. E3 from 2013

Frame/bodywork

Frame/bodywork

for X10 4T 4V I.E. E3 from 2013

Rear headlamps - Turn signal lamps

Rear headlamps - Turn signal lamps

for X10 4T 4V I.E. E3 from 2013

Meter combination - Cruscotto

Meter combination - Cruscotto

for X10 4T 4V I.E. E3 from 2013

Front covers - Mudflaps

Front covers - Mudflaps

for X10 4T 4V I.E. E3 from 2013

Side cover - Spoiler

Side cover - Spoiler

for X10 4T 4V I.E. E3 from 2013

Flywheel magneto cover - Oil filter

Flywheel magneto cover - Oil filter

for X10 4T 4V I.E. E3 from 2013

Flywheel magneto

Flywheel magneto

for X10 4T 4V I.E. E3 from 2013

Cylinder head cover

Cylinder head cover

for X10 4T 4V I.E. E3 from 2013

Front headlamps - Turn signal lamps

Front headlamps - Turn signal lamps

for X10 4T 4V I.E. E3 from 2013

Driving mirror/s

Driving mirror/s

for X10 4T 4V I.E. E3 from 2013

Fork's components (Kayaba)

Fork's components (Kayaba)

for X10 4T 4V I.E. E3 from 2013

Stater - Electric starter

Stater - Electric starter

for X10 4T 4V I.E. E3 from 2013

Oil pump

Oil pump

for X10 4T 4V I.E. E3 from 2013

Central cover - Footrests

Central cover - Footrests

for X10 4T 4V I.E. E3 from 2013

Front wheel

Front wheel

for X10 4T 4V I.E. E3 from 2013

Rocking levers support unit

Rocking levers support unit

for X10 4T 4V I.E. E3 from 2013

Helmet huosing - Undersaddle

Helmet huosing - Undersaddle

for X10 4T 4V I.E. E3 from 2013

Swinging arm

Swinging arm

for X10 4T 4V I.E. E3 from 2013

Crankcase cover - Crankcase cooling

Crankcase cover - Crankcase cooling

for X10 4T 4V I.E. E3 from 2013

Front glove-box - Knee-guard panel

Front glove-box - Knee-guard panel

for X10 4T 4V I.E. E3 from 2013

Handlebars coverages

Handlebars coverages

for X10 4T 4V I.E. E3 from 2013

Crankshaft

Crankshaft

for X10 4T 4V I.E. E3 from 2013

Throttle body - Injector - Union pipe

Throttle body - Injector - Union pipe

for X10 4T 4V I.E. E3 from 2013

Windshield - Glass

Windshield - Glass

for X10 4T 4V I.E. E3 from 2013

GILERA PIAGGIO VESPA X10 4T 4V I.E. E3 2013

X10 4T 4V I.E. E3

X10 4T 4V I.E. E3

Model : X10

Engine capacity : 350

Year : 2013

New and OEM parts
International Shipping
Official price Gilera Piaggio Vespa
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.3 /5
1058 Reviews
View all reviews
Spare parts catalogue for all brands
