Parts Catalog
Handlebars coverages
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
Crankshaft
Handlebars coverages
1
2
3
4
5
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
1
Central cover
6734020090
Not Available
2
Self tapping screw D4.2x13
CM178603
£1,87 Unit Price incl. VAT
3
Expansion plug
157716
£0,16 Unit Price incl. VAT
4
Gripper clip
D9004468091
£4,58 Unit Price incl. VAT
5
Screw
CM180703
£2,42 Unit Price incl. VAT
6
Upper handlebar cover
673379
£185,33 Unit Price incl. VAT
7
Self tapping screw
CM178602
Not Available
8
Spring plate
CM017410
£0,71 Unit Price incl. VAT
9
Spring plate
230359
£0,95 Unit Price incl. VAT
10
Guard
675011
£9,79 Unit Price incl. VAT
11
Left lower handlebar cover
673380
£96,17 Unit Price incl. VAT
12
Right handlebar lower cover
673378
£96,17 Unit Price incl. VAT
13
Self tapping screw 4,2x16
CM178606
£9,08 Unit Price incl. VAT
14
Left side handlebar cover
67579600H7
Not Available
15
Right side handlebar cover
67579700H7
Not Available
16
Tyre
675246
£92,40 Unit Price incl. VAT
17
Bracket with U.P.
675249
£76,21 Unit Price incl. VAT
18
Bracket
675250
£87,05 Unit Price incl. VAT
19
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
20
Spring washer 6,4x11,8x1
016406
Not Available
21
Self-tap screw
CM178604
£1,24 Unit Price incl. VAT
22
Hexagonal-head screw m5x10
829312
Not Available
23
Plain washer 5,4x10x0,8
003055
Not Available
24
Screw
015978
Not Available
25
Flat washer
565228
Not Available
26
Spacer
656952
£5,54 Unit Price incl. VAT
27
Nut
020105
Not Available
28
Nut
012112
Not Available
29
Cover
6252687101000
£0,44 Unit Price incl. VAT

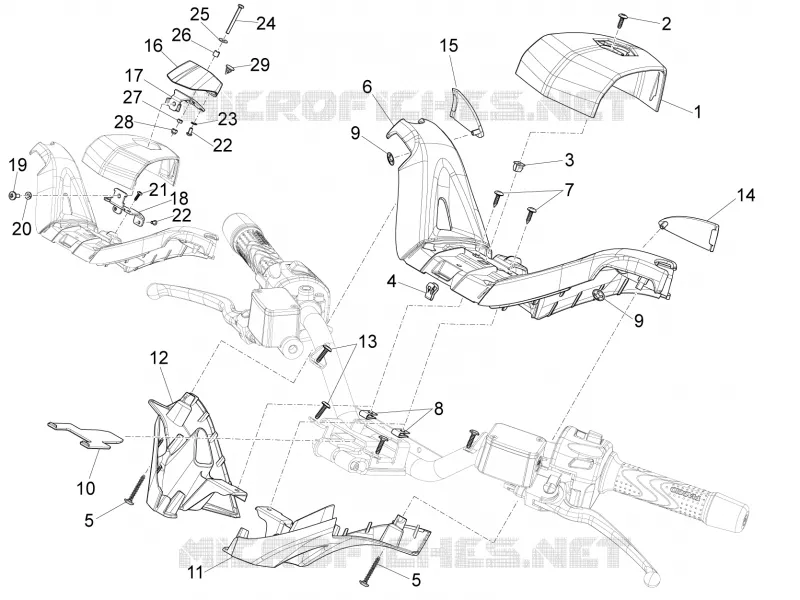

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
