Engine displacement
350
2
Model
X10
3
Year
2014
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Crankcase
6

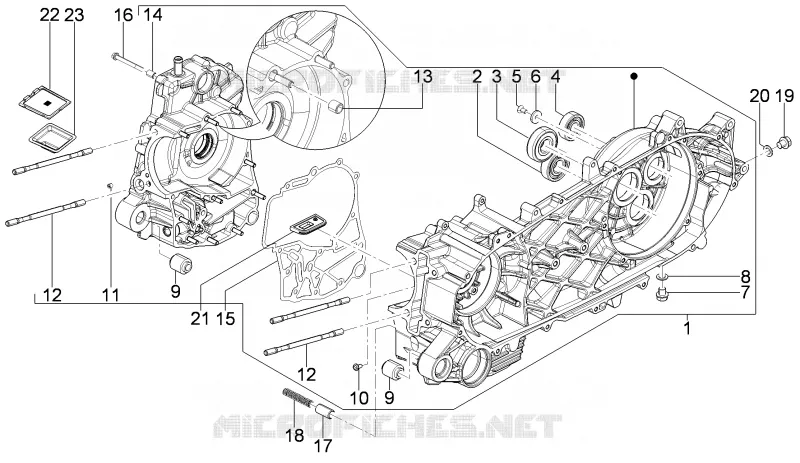

Parts Diagram
Parts Catalog
Cooling system
by
Plates - Emblems
Crankcase
1
2
3
3
4
5
6
7
8
9
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
1
2nd cat. complete crankcase
B0194530B
Not Available
1
Complete crankcase 1st cat.
B0194530A
Not Available
1
2nd cat. complete crankcase
B0182050002
Not Available
1
Complete crankcase 1st cat.
B0182050001
Not Available
2
Radial bearing 20x47x14
485913
Not Available
3
Radial bearing
B015269
£70,97 Unit Price incl. VAT
4
Radial ball bearing 15x42x13
83018R
£10,26 Unit Price incl. VAT
5
Screw
B013608
£1,98 Unit Price incl. VAT
6
Washer
873905
£10,52 Unit Price incl. VAT
7
screw
847174
Not Available
8
Washer
847238
£1,50 Unit Price incl. VAT
9
Silent-block
486081
£9,73 Unit Price incl. VAT
10
Calibrated nozzle
B015068
£5,98 Unit Price incl. VAT
11
Calibrated nozzle
B015069
£5,98 Unit Price incl. VAT
12
Stud bolt
877285
Not Available
13
Pin 6,5x9,5x15
239388
Not Available
14
Locating dowel Ø11x10
478115
Not Available
15
Half crankcase gasket
B015425
£11,95 Unit Price incl. VAT
16
Screw w/ flange M6x60
B016425
£1,62 Unit Price incl. VAT
17
Oil pressure valve
829661
£11,54 Unit Price incl. VAT
18
Spring
485655
£1,13 Unit Price incl. VAT
19
screw
847174
Not Available
20
Washer
847238
£1,50 Unit Price incl. VAT
21
Reeds bracket
877704
£30,24 Unit Price incl. VAT
22
Intake oil filter
877822
£8,29 Unit Price incl. VAT
23
Oil intake plate
877823
£7,44 Unit Price incl. VAT
