1
Engine displacement
350
2
Model
X10
3
Year
2013
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog

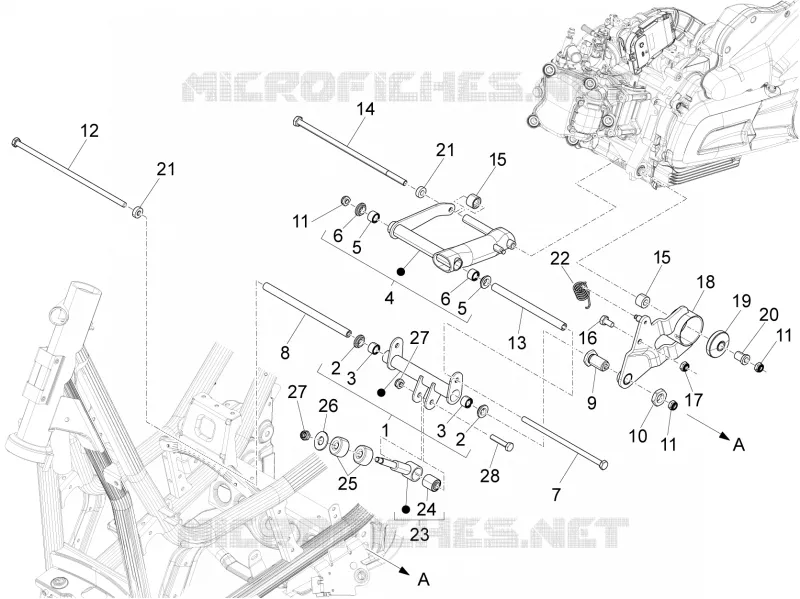

Swinging arm
6
Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
Crankcase cover - Crankcase cooling
Swinging arm
1
2
2
3
3
4
5
5
6
6
7
8
9
10
11
11
11
12
13
14
15
15
16
17
18
19
20
21
21
22
23
24
25
26
27
27
28
1
Complete swinging arm on frame side
668172
£107,11 Unit Price incl. VAT
2
Bush
597317
£1,84 Unit Price incl. VAT
3
Roller cage
597374
Not Available
4
Complete swinging arm on engine side
668156
£237,23 Unit Price incl. VAT
5
Bush
597317
£1,84 Unit Price incl. VAT
6
Roller cage
597374
Not Available
7
Hex screw M10x225
667827
£11,90 Unit Price incl. VAT
8
Spacer L=235.5
CM067809
£13,98 Unit Price incl. VAT
9
Threaded bush
668564
£31,56 Unit Price incl. VAT
10
Nut m22x2 h=8
564611
£4,70 Unit Price incl. VAT
11
Self locking nut M10
002440
Not Available
12
Hex screw
667441
£13,12 Unit Price incl. VAT
13
Spacer L=198
CM067807
£14,09 Unit Price incl. VAT
14
Hex screw
597043
£7,33 Unit Price incl. VAT
15
Swinging arm spacer
657451
£7,64 Unit Price incl. VAT
16
Hex socket screw
597893
£1,24 Unit Price incl. VAT
17
Self locking nut M10
002440
Not Available
18
Complete silent block support bracket
668159
£124,97 Unit Price incl. VAT
19
Silent-block
668514
Not Available
20
Spacer
668892
£12,94 Unit Price incl. VAT
21
Spacer
668718
£3,43 Unit Price incl. VAT
22
Spring
667026
£9,58 Unit Price incl. VAT
23
Change gear tie rod compl.
668185
£82,68 Unit Price incl. VAT
24
Sil.block
880343
£19,07 Unit Price incl. VAT
25
Lower buffer
178149
£3,59 Unit Price incl. VAT
26
Washer 10,3x38x3
179326
£1,32 Unit Price incl. VAT
27
Self locking nut M10
002440
Not Available
28
Hex screw
668329
£4,99 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
