Engine displacement
350
2
Model
X10
3
Year
2013
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Reduction unit
by
Driving pulley
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Rear wheel
667942
£225,24 Unit Price incl. VAT
2
Tubeless valve
597679
£6,16 Unit Price incl. VAT
3
(Michelin) Tyre 150/70-13"
668143
£189,79 Unit Price incl. VAT
3
Tyre (Sava) 150/70-13"
668145
Not Available
4
Brake disc
56498R
£67,42 Unit Price incl. VAT
5
Hex screw M6x22
667153
£1,24 Unit Price incl. VAT
6
Spacer
666659
£19,69 Unit Price incl. VAT
7
Spacer
597528
£7,33 Unit Price incl. VAT
8
Nut M16x13
563728
£2,48 Unit Price incl. VAT
9
Nut hold cap
194423
Not Available
10
Split pin
012789
Not Available
11
Phase/revolution sensor
832963
Not Available
12
O-ring
430044
£0,98 Unit Price incl. VAT
13
Screw w/ flange M6x16
434541
Not Available
14
Spacer for timing sensor
646760
Not Available
15
ABS sensor
6429875
Not Available
16
screw
842041
£0,97 Unit Price incl. VAT
17
ABS rear tone wheel
667715
Not Available
18
Hex socket screw M6x20
667152
£1,27 Unit Price incl. VAT
19
Rear brake disc
667851
£76,00 Unit Price incl. VAT

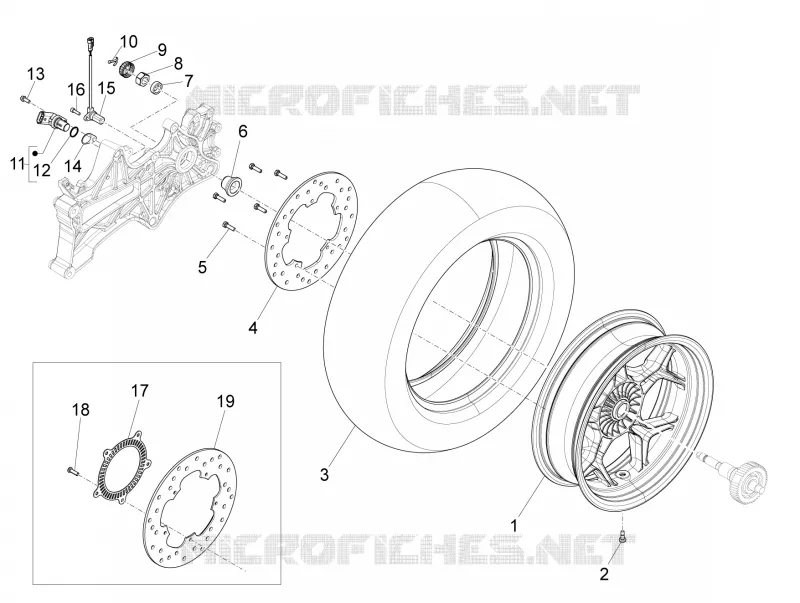

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
