1
Engine displacement
350
2
Model
X10
3
Year
2014
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog

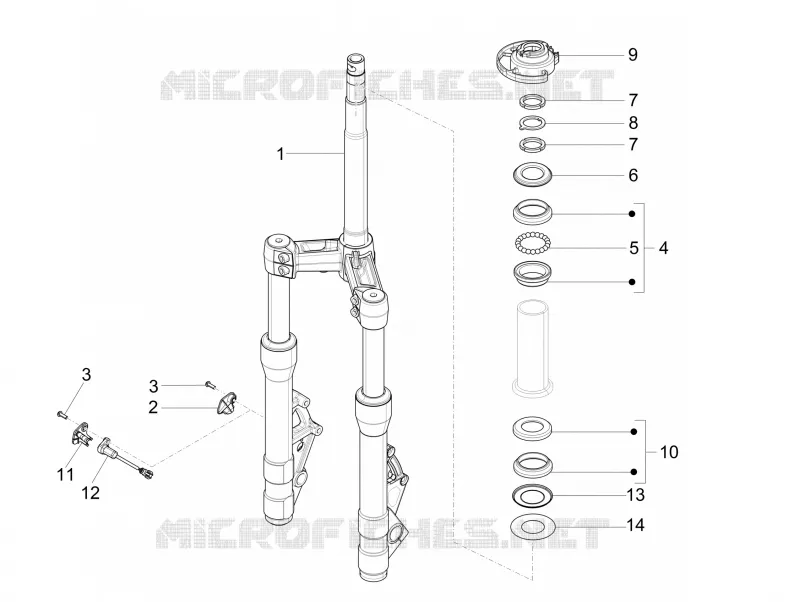

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Rear cover - Splash guard
by
Selectors - Switches - Buttons
Fork/steering tube - Steering bearing unit
1
2
3
3
4
5
6
7
7
8
9
10
11
12
13
14
1
Front fork
58610R
£354,89 Unit Price incl. VAT
2
Complete cover
668544
£15,05 Unit Price incl. VAT
3
screw
842041
£0,97 Unit Price incl. VAT
4
Upper thrust ring
600750
Not Available
5
Missing description
000000
Not Available
6
Cup
600753
£7,64 Unit Price incl. VAT
7
Steering tube ring nut
0111094
Not Available
8
Steering security plate
582787
£1,91 Unit Price incl. VAT
9
Protection collar
666439
£21,66 Unit Price incl. VAT
10
Lower steering bearing
56430R
£38,86 Unit Price incl. VAT
11
Complete cover
668489
£14,78 Unit Price incl. VAT
12
Sensor ABS
859792
Not Available
13
Guard washer
600356
£1,36 Unit Price incl. VAT
14
Washer
600357
£2,12 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
