Engine displacement
350
2
Model
X10
3
Year
2014
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Flywheel magneto
Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Flywheel side cover
B017464
Not Available
2
Copper gasket
287174
£2,28 Unit Price incl. VAT
3
Oil unload plug
878622
Not Available
3
Oil unload plug
1A000139
£15,59 Unit Price incl. VAT
4
Drive coupling
B014573
£11,98 Unit Price incl. VAT
5
Flat washer
878766
£12,94 Unit Price incl. VAT
6
Gasket ring
B016998
£19,73 Unit Price incl. VAT
6
Gasket ring
878750
Not Available
7
Water pump shaft assy.
B014574
£90,04 Unit Price incl. VAT
8
Gasket ring
82991R
£27,28 Unit Price incl. VAT
9
Water pump impeller cpl.
B013969
£9,40 Unit Price incl. VAT
10
Minimum oil pressure sensor
643090
Not Available
11
Oil plug assembly
880725
£7,00 Unit Price incl. VAT
12
O-ring
479986
Not Available
13
screw M6x35
414838
£1,27 Unit Price incl. VAT
14
Flywheel housing cover gasket
B019459
£14,35 Unit Price incl. VAT
14
Flywheel housing cover gasket
B014671
Not Available
15
Washer 10,5x17x1,5
AP9150472
£2,22 Unit Price incl. VAT
16
Oil breather pipe
B013014
Not Available
17
Hose clamp
CM001921
£3,67 Unit Price incl. VAT
18
Hose clamp
CM001902
Not Available

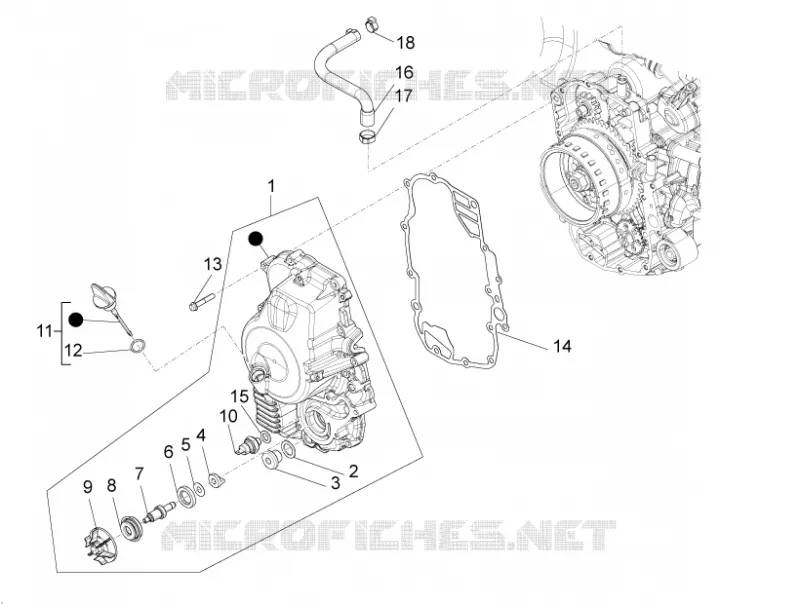

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
