Engine displacement
350
2
Model
X10
3
Year
2013
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Flywheel magneto
6

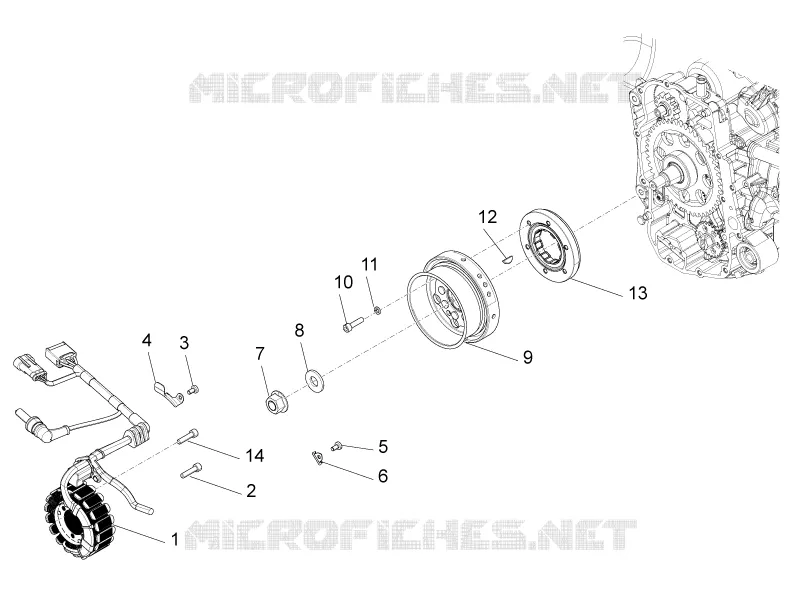

Parts Diagram
Parts Catalog
Flywheel magneto cover - Oil filter
by
Cylinder head cover
Flywheel magneto
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Stator
58281R
£89,32 Unit Price incl. VAT
1
Stator
58244R
Not Available
2
screw M6x25
018553
Not Available
3
TBCIC Screw M5x12
015935
Not Available
4
Plate
877649
£116,02 Unit Price incl. VAT
5
Screw M5x10
018575
Not Available
6
Plate
880729
£2,11 Unit Price incl. VAT
7
Nut M14x1,5
827116
£2,12 Unit Price incl. VAT
8
Flat washer 14.1x30x3
825725
£3,42 Unit Price incl. VAT
9
Rotor, assy.
642795
Not Available
10
Hex socket screw M6x24
877289
£1,24 Unit Price incl. VAT
11
Break washer
479515
£0,47 Unit Price incl. VAT
12
Transmission key
000097
Not Available
13
Complete freewheel
8494905
Not Available
14
Screw M5x10
018575
Not Available
