1
Engine displacement
250
2
Model
X7
3
Year
2008
4
Trim
X7 ie Euro 3
5
Parts Catalog
Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Stater - Electric starter
by
Remote control switches - Battery - Horn

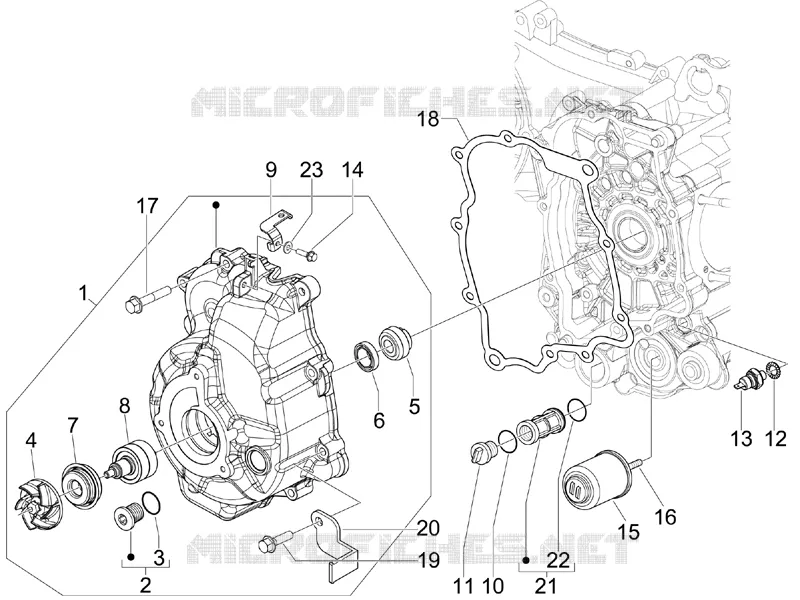

Flywheel magneto cover - Oil filter
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Flywheel cover cpl.
8483785
Not Available
2
Timing plug assembly
829040
Not Available
3
O-ring
479986
Not Available
4
Water pump impeller cpl.
844730
£12,84 Unit Price incl. VAT
5
Pump impeller drive key
842389
£31,21 Unit Price incl. VAT
6
Gasket ring
82871R
Not Available
7
Gasket ring
842595
Not Available
8
Water pump shaft assy.
8447595
£57,52 Unit Price incl. VAT
9
Bracket
639843
£11,71 Unit Price incl. VAT
10
O-ring 31,47x1,78
285536
£1,64 Unit Price incl. VAT
11
Oil filter plug
82823R
Not Available
12
Washer 10.5X16X2.5
486075
£1,32 Unit Price incl. VAT
13
Oil pressure sensor
82580R
Not Available
14
Screw w/ flange
484123
£0,54 Unit Price incl. VAT
15
Oil filter
82635R
Not Available
16
Oil filter special screw
840507
£10,91 Unit Price incl. VAT
17
screw M6x35
414838
£1,27 Unit Price incl. VAT
18
Flywheel housing cover gasket
840504
£10,57 Unit Price incl. VAT
19
screw
844160
Not Available
20
Plate
848109
£1,52 Unit Price incl. VAT
21
Intake oil filter
843568
£5,87 Unit Price incl. VAT
22
O-ring 20,35x1,78
288474
£0,52 Unit Price incl. VAT
23
Washer
012528
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
