Parts Catalog
Reduction unit
6
Parts Diagram
Parts Catalog
Flywheel magneto cover - Oil filter
by
Throttle body - Injector - Union pipe
Reduction unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Side cover
8481875
Not Available
2
Radial ball bearing 15x42x13
485912
Not Available
3
Radial bearing 30x55x13
82659R
Not Available
4
Circlip
829206
£1,36 Unit Price incl. VAT
5
Oil seal 38x50x7
873351
Not Available
6
Transmission shaft Z=21/50
8410015
Not Available
7
Driven pulley shaft Z=14
8738755
£224,71 Unit Price incl. VAT
8
Rear wheel axis cpl. Z=44
8758035
Not Available
9
Gasket
847931
£7,80 Unit Price incl. VAT
10
Reduction unit breather pipe assembly
CM162202
£19,60 Unit Price incl. VAT
10
Breather pipe
844669
Not Available
11
Screw w/ flange M8x45
487211
Not Available
12
Screw w/ flange M8x40
873980
Not Available
13
Hex socket screw M8x12
269755
£1,36 Unit Price incl. VAT
14
Washer 8.2x12x1
485703
£0,96 Unit Price incl. VAT

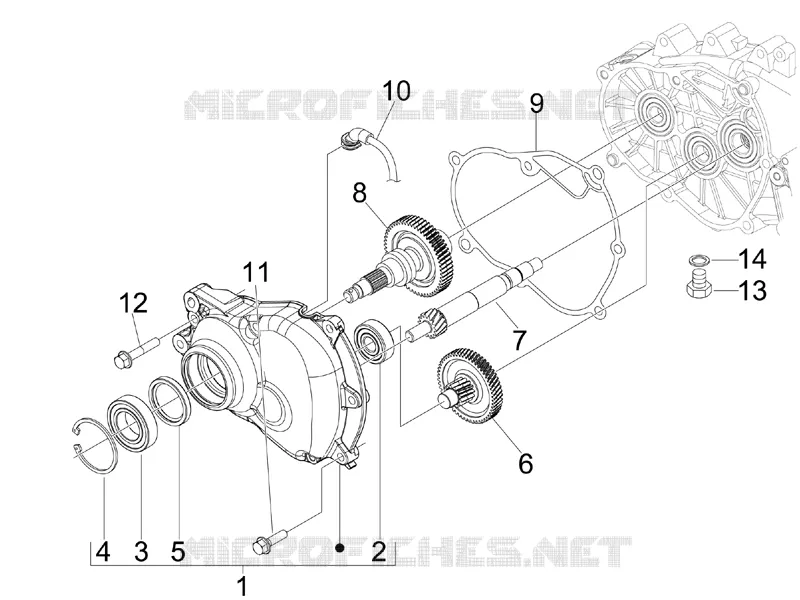

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
