Parts Catalog
Flywheel magneto cover - Oil filter
6

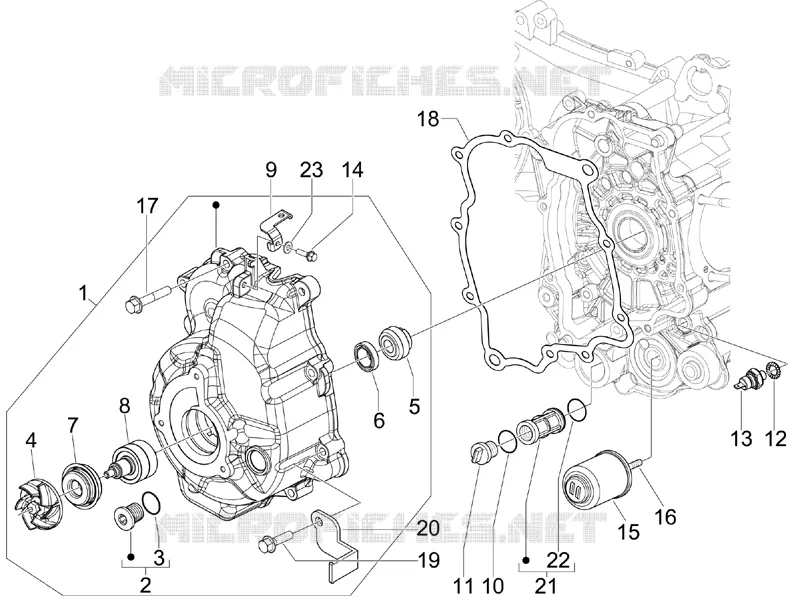

Parts Diagram
Parts Catalog
Flywheel magneto
by
Reduction unit
Flywheel magneto cover - Oil filter
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
22
23
1
Flywheel cover cpl.
8483785
Not Available
2
Timing plug assembly
829040
Not Available
3
O-ring
479986
Not Available
4
Water pump impeller cpl.
844730
£12,84 Unit Price incl. VAT
5
Pump impeller drive key
842389
£31,21 Unit Price incl. VAT
6
Gasket ring 20x30x5
82897R
£12,89 Unit Price incl. VAT
7
Gasket ring
842595
Not Available
8
Water pump shaft assy.
8447595
£57,52 Unit Price incl. VAT
8
Water pump shaft assy.cpl.
844759
Not Available
9
Bracket
639843
£11,71 Unit Price incl. VAT
10
O-ring 31,47x1,78
285536
£1,64 Unit Price incl. VAT
11
Oil filter plug
826165
£22,13 Unit Price incl. VAT
12
Washer 10.5X16X2.5
486075
£1,32 Unit Price incl. VAT
13
Oil pressure sensor
641541
Not Available
14
Screw w/ flange
484123
£0,54 Unit Price incl. VAT
15
Oil filter
82635R
Not Available
16
Oil filter special screw
840507
£10,91 Unit Price incl. VAT
17
screw M6x35
414838
£1,27 Unit Price incl. VAT
18
Flywheel housing cover gasket
840504
£10,57 Unit Price incl. VAT
19
screw
844160
Not Available
21
Intake oil filter
843568
£5,87 Unit Price incl. VAT
22
O-ring 20,35x1,78
288474
£0,52 Unit Price incl. VAT
23
Washer
012528
Not Available
