Parts Catalog

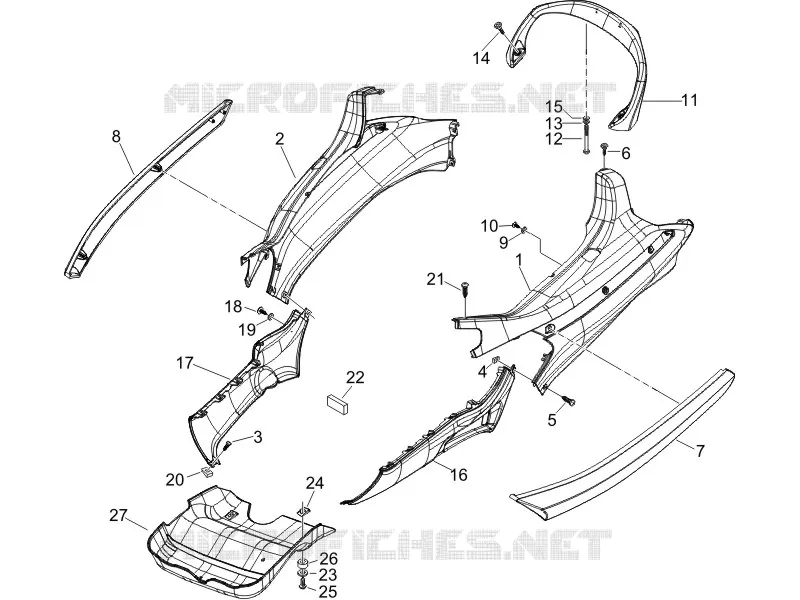

Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Central cover - Footrests
by
Wheel huosing - Mudguard
Side cover - Spoiler
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Rear body side l.h.
62025100ND
Not Available
1
Fairing
62025100RE
Not Available
1
LEFT REAR COVER
6202510087
Not Available
1
RR LH SIDE COVER
62025100D9
Not Available
1
Rear body side l.h.
6202510090
£129,44 Unit Price incl. VAT
1
Fairing
62025100EC
Not Available
1
Fairing
62025100F2
Not Available
2
RH SIDE COVER
62025200D9
Not Available
2
Fairing
62025200RE
Not Available
2
Fairing
62025200F2
Not Available
2
Fairing
62025200EC
£111,79 Unit Price incl. VAT
2
RIGHT REAR COVER
6202520087
Not Available
2
Rear body side r.h.
62025200ND
Not Available
2
Rear body side r.h.
6202520090
Not Available
3
Self-tap screw
576189
Not Available
4
Spring plate
CM017410
£0,71 Unit Price incl. VAT
5
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
6
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
7
Guard
620257
Not Available
8
Guard
620258
£70,09 Unit Price incl. VAT
9
Flat washer 4,2x12x1
013763
Not Available
10
Self tapping screw
297498
£0,60 Unit Price incl. VAT
11
PASSENGER'S HANDLE
620255000P
£66,68 Unit Price incl. VAT
11
Handle
62025500ED
Not Available
12
screw
030062
Not Available
13
Spring washer 6,4x11,8x1
016406
Not Available
14
Self tapping screw M6x35
259708
£1,02 Unit Price incl. VAT
15
Flat washer 16x6,5x1,5
013880
Not Available
16
Left spoiler
62024500ND
Not Available
16
Left spoiler
620245
£132,19 Unit Price incl. VAT
16
Spoiler
62024500F2
Not Available
16
LEFT SPOILER
6202450087
Not Available
16
Spoiler
62024500EC
Not Available
16
Left spoiler
6202450090
£77,68 Unit Price incl. VAT
16
LH BELLYPAN
62024500D9
Not Available
16
Spoiler
62024500RE
Not Available
17
Right spoiler
620246
Not Available
17
Spoiler
62024600EC
Not Available
17
RH BELLYPAN
62024600D9
£77,68 Unit Price incl. VAT
17
Spoiler
62024600F2
Not Available
17
Right spoiler
62024600ND
Not Available
17
RIGHT SPOILER
6202460087
Not Available
17
Right spoiler
6202460090
Not Available
17
Spoiler
62024600RE
Not Available
18
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
19
Washer
013963
Not Available
20
Spring plate
CM017410
£0,71 Unit Price incl. VAT
21
Self-tap screw
576189
Not Available
22
Pad
621485
£3,65 Unit Price incl. VAT
23
Washer 6,2x18x2
013950
Not Available
24
Spring plate M6
254485
£1,64 Unit Price incl. VAT
25
Metric screw M6x20
259830
Not Available
26
Spacer
624085
£1,24 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
