1
Rear brake caliper (Brembo)
CM067904
Not Available
2
Clip-pin-spring kit
600207
Not Available
3
Brake pads kit (Brembo)
647077
£42,94 Unit Price incl. VAT
5
Brake caliper
CM072501
Not Available
7
screw M8x30
015792
Not Available
8
Spring washer
709047
£0,70 Unit Price incl. VAT
10
Fairlead
230636
£3,90 Unit Price incl. VAT
11
Hose clamp
564836
£1,50 Unit Price incl. VAT
12
Caliper support bracket
598060
Not Available
12
Caliper support bracket
649418
Not Available
13
screw
598919
£0,58 Unit Price incl. VAT
14
Spring washer
709047
£0,70 Unit Price incl. VAT
15
screw
030076
Not Available
16
Brake washer
598833
£3,05 Unit Price incl. VAT
17
Hose clamp
307166
£1,27 Unit Price incl. VAT
19
Brake pipe (valve-pump)
564784
Not Available
20
Gasket
127927
£1,04 Unit Price incl. VAT
21
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
22
BREAK PIPES
599514
£45,89 Unit Price incl. VAT
23
BREAK PIPES
599515
Not Available
24
BREAK PIPES
599545
£46,57 Unit Price incl. VAT
25
Rear brake stiff pipe
600876
£28,24 Unit Price incl. VAT
26
Valve
56122R
Not Available
27
Hex socket screw M6x20
709674
£1,27 Unit Price incl. VAT
28
Spring washer 6,4x11x0,5
006966
Not Available
29
Joint
597033
£27,38 Unit Price incl. VAT
30
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
31
Hose clamp
597395
Not Available
32
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
33
Spring washer 6,4x11x0,5
006966
Not Available
34
Spring
179013
£5,17 Unit Price incl. VAT
35
Plate
136916
£3,37 Unit Price incl. VAT
36
Screw m6x12
031086
Not Available
37
Spring washer 6,4x11x0,5
006966
Not Available
38
Hose clamp
482290
Not Available
39
Brake pads couple
647074
Not Available
40
Support clamp
581767
£1,32 Unit Price incl. VAT
41
Fairlead
563989
£2,20 Unit Price incl. VAT
42
Hose clamp
564835
Not Available
43
screw M6x35
414838
£1,27 Unit Price incl. VAT
44
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
45
Elastic spring
231590
£0,60 Unit Price incl. VAT
46
Self locking nut M6
241936
£0,74 Unit Price incl. VAT
47
Non return spring l=27
CM006904
£2,32 Unit Price incl. VAT
48
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
49
Brake pipe support bracket
599523
Not Available
51
Kit spring/blade
599321
Not Available
52
Hose clamp
269273
£1,90 Unit Price incl. VAT
53
Brake caliper
CM072502
Not Available
54
Brake pads couple
650097
£38,11 Unit Price incl. VAT
55
Kit spring/blade
599321
Not Available

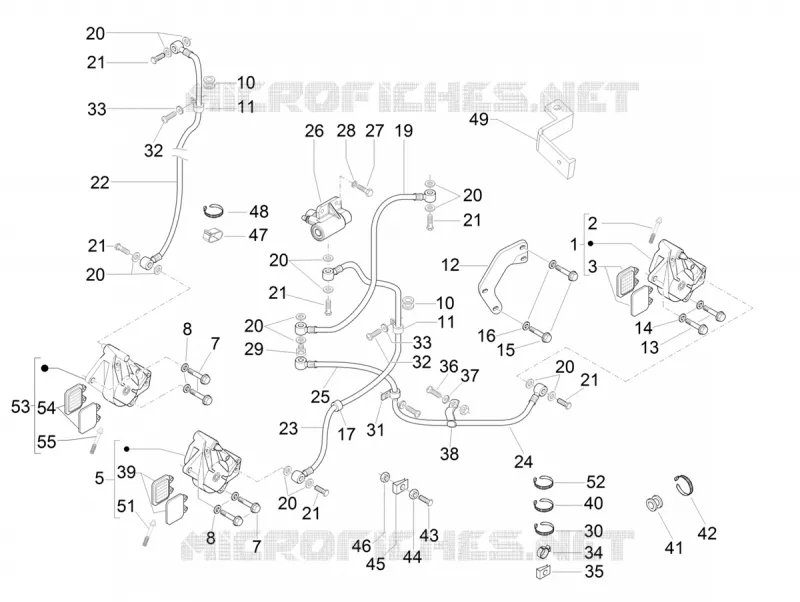

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
