1
Engine displacement
500
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution
5
Parts Catalog
Rear suspension - Shock absorber/s
6

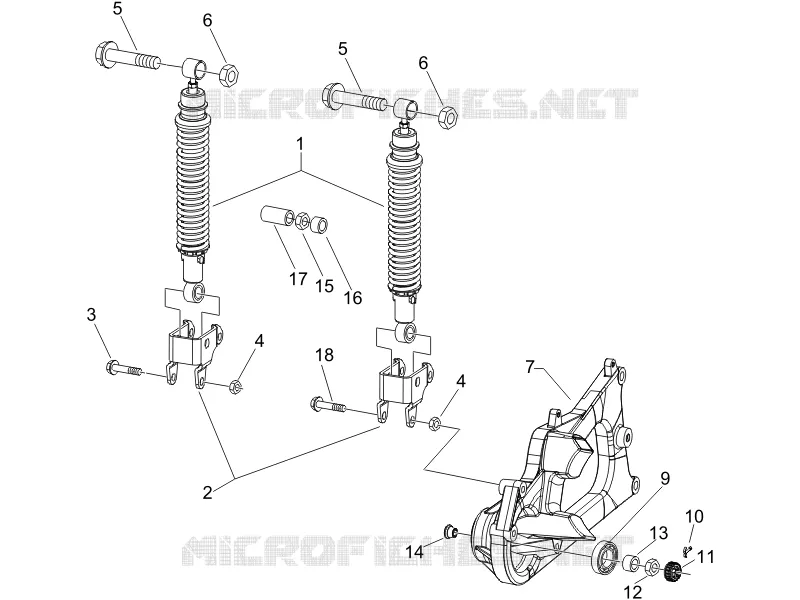

Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Brakes pipes - Calipers
Rear suspension - Shock absorber/s
1
2
3
4
4
5
5
6
6
7
9
10
11
12
13
14
15
16
17
18
1
rear shock for X-9 500
56229R
£109,94 Unit Price incl. VAT
2
Bracket
599559
Not Available
3
Screw w/ flange M10
268158
£1,87 Unit Price incl. VAT
4
Nut M8
020008
Not Available
5
screw
599564
Not Available
6
Self locking nut M10
232108
Not Available
7
suspension arm X-9
841030
Not Available
9
Ball bearing
82545R
£22,90 Unit Price incl. VAT
10
Split pin
012789
Not Available
11
Nut hold cap
194423
Not Available
12
Nut M16x13
563728
£2,48 Unit Price incl. VAT
13
Spacer
597528
£7,33 Unit Price incl. VAT
14
Wheel spacer
848039
£25,44 Unit Price incl. VAT
15
Self locking nut M10
232108
Not Available
16
Spacer
597178
£3,76 Unit Price incl. VAT
17
Spacer
597179
£4,36 Unit Price incl. VAT
18
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
