1
Engine displacement
500
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution
5
Parts Catalog

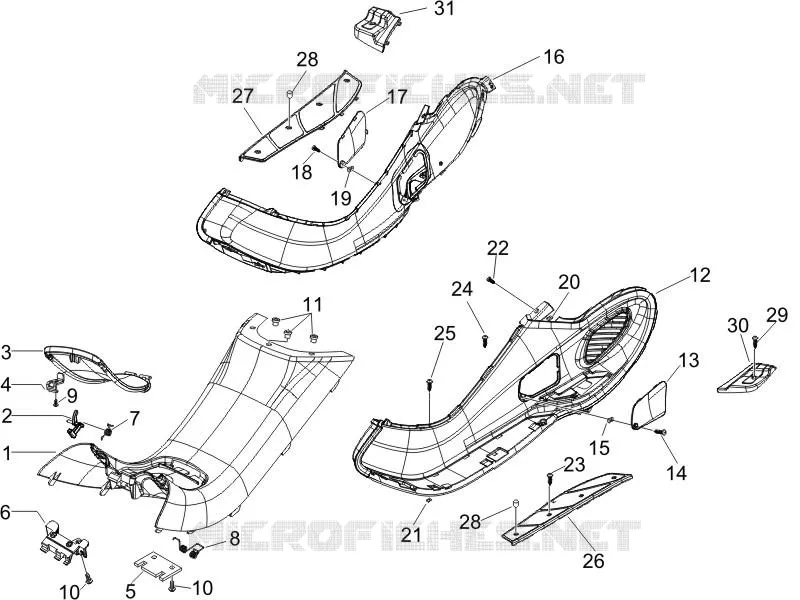

Central cover - Footrests
6
Parts Diagram
Parts Catalog
Rear headlamps - Turn signal lamps
by
Head unit - Valve
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
1
CENTRAL COVER
575558
Not Available
2
Cam lever
576626
£2,20 Unit Price incl. VAT
3
SERVICE DOOR
575559
Not Available
4
Square
299689
Not Available
5
Plate
575605
Not Available
6
Maintenance
620491
£3,46 Unit Price incl. VAT
7
Spring
575604
£2,70 Unit Price incl. VAT
8
Spring
621507
£7,58 Unit Price incl. VAT
9
Self tapping screw
297498
£0,60 Unit Price incl. VAT
10
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
11
Knurled bushing
830056
£1,27 Unit Price incl. VAT
12
Footrest
62000300E8
Not Available
13
Spark plug insp. door
57557700E8
Not Available
14
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
15
Spring plate
CM017410
£0,71 Unit Price incl. VAT
16
Footrest
62236800E8
Not Available
17
Spark plug insp. door
62162400E8
Not Available
18
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
19
Spring plate
CM017410
£0,71 Unit Price incl. VAT
20
Spring plate
CM017410
£0,71 Unit Price incl. VAT
21
Spring plate M6
254485
£1,64 Unit Price incl. VAT
22
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
23
Screw m6x55
259988
Not Available
23
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
24
screw 4,2x19
258249
£0,73 Unit Price incl. VAT
25
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
26
Lh mat
575597
£35,77 Unit Price incl. VAT
27
Rh mat
575598
Not Available
28
Pin
CM011101
£2,66 Unit Price incl. VAT
29
Self tapping screw
297498
£0,60 Unit Price incl. VAT
30
Footrest
57676100E8
Not Available
30
LH FOOT REST X9 500 M.02
576761
£14,39 Unit Price incl. VAT
31
Footrest
57676300E8
Not Available
31
RH FOOT REST X9 500 M.02
576763
£16,73 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
