Engine displacement
500
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution ABS
5
Parts Catalog
Rear headlamps - Turn signal lamps
6

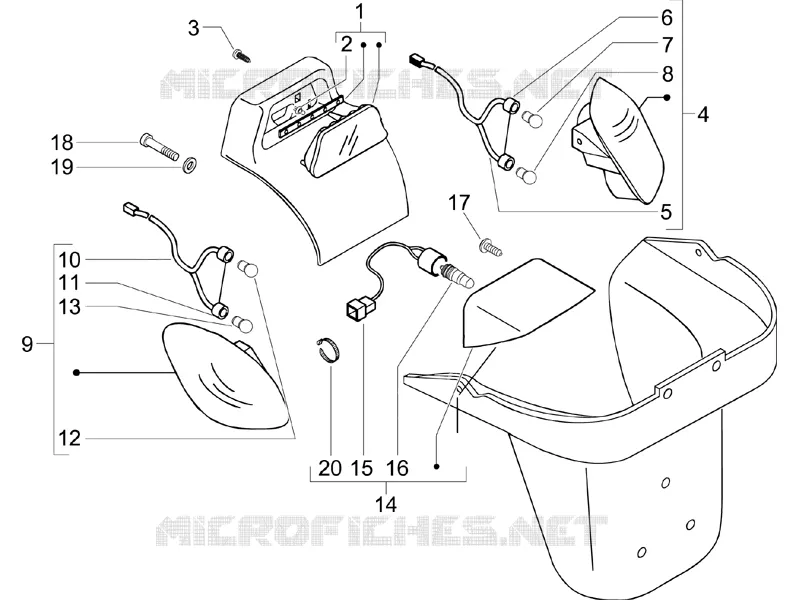

Parts Diagram
Parts Catalog
Front headlamps - Turn signal lamps
by
Remote control switches - Battery - Horn
Rear headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Headlight
638693
Not Available
2
Glass lamp 12v-2,3w
581056
Not Available
3
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
4
RH TAIL LAMP X9 EVOLUTION
638727
£73,80 Unit Price incl. VAT
5
Cable harness r.h.
581647
Not Available
6
Lampholder
581648
Not Available
7
Bulb 12V-5W
181747
Not Available
8
Lamp 12V-10W
181746
£2,92 Unit Price incl. VAT
9
LH TAIL LAMP X9 EVOLUTION
638728
£73,80 Unit Price incl. VAT
10
Cable harness l.h.
581653
Not Available
11
Lampholder
581648
Not Available
12
Bulb 12V-5W
181747
Not Available
13
Lamp 12V-10W
181746
£2,92 Unit Price incl. VAT
14
REAR LAMP
63873200E8
Not Available
15
Lampholder
581443
£14,12 Unit Price incl. VAT
16
Lamp 12V-5W
292022
Not Available
17
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
18
screw M6x14
008375
Not Available
19
Washer 6.4x13x1.5
013777
Not Available
20
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
