Engine displacement
500
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution ABS
5
Parts Catalog
Flywheel magneto cover - Oil filter
6

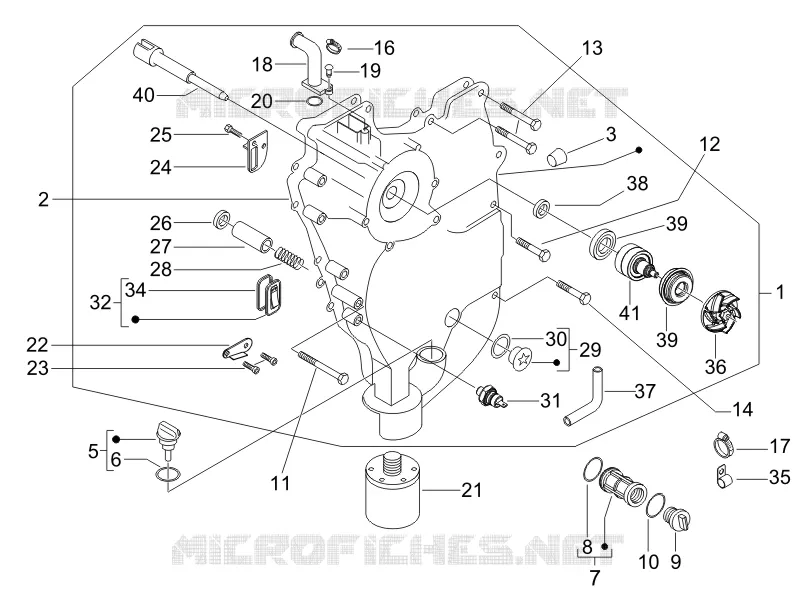

Parts Diagram
Parts Catalog
Flywheel magneto
by
Reduction unit
Flywheel magneto cover - Oil filter
1
2
3
5
6
7
8
9
10
11
12
13
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
34
35
36
37
38
39
39
40
41
1
Flywheel cover cpl.
8720885
Not Available
2
Flywheel housing cover gasket
872914
£19,68 Unit Price incl. VAT
2
Flywheel housing cover gasket
847649
£21,47 Unit Price incl. VAT
3
Plug M12x1,5
411311
Not Available
5
Oil plug
825665
Not Available
6
O-ring
479986
Not Available
7
Oil filter
826033
£5,72 Unit Price incl. VAT
8
O-ring 20,35x1,78
288474
£0,52 Unit Price incl. VAT
9
Oil filter plug
82823R
Not Available
9
Oil filter plug
826165
£22,13 Unit Price incl. VAT
10
O-ring 31,47x1,78
285536
£1,64 Unit Price incl. VAT
11
Screw m6x70
434429
£2,42 Unit Price incl. VAT
12
Screw w/ flange M6x25
414837
Not Available
13
screw M6x35
414838
£1,27 Unit Price incl. VAT
14
screw
414835
Not Available
16
Hose clamp
CM002901
£0,62 Unit Price incl. VAT
17
Hose clamp
845978
£8,57 Unit Price incl. VAT
18
Breather pipe
829047
£7,51 Unit Price incl. VAT
19
TBCIC Screw M5x12
015935
Not Available
20
O-ring
237553
£1,87 Unit Price incl. VAT
21
Oil filter
82883R
Not Available
21
Oil filter cpl.
82658R
Not Available
22
Plate
830886
£5,41 Unit Price incl. VAT
23
Screw M5x10
018575
Not Available
24
Valve tightening plate with U.P.
876060
£12,05 Unit Price incl. VAT
24
Valve tightening plate with U.P.
828930
£6,73 Unit Price incl. VAT
25
screw M5x10
433800
£0,86 Unit Price incl. VAT
26
Washer 10.5X16X2.5
486075
£1,32 Unit Price incl. VAT
27
Oil pressure valve
829661
£11,54 Unit Price incl. VAT
28
Spring
829486
£1,72 Unit Price incl. VAT
29
Timing plug assembly
829040
Not Available
30
O-ring
479986
Not Available
31
Oil pressure sensor
82580R
Not Available
32
Reed valve support
82778R
£37,46 Unit Price incl. VAT
34
Gasket
828031
Not Available
35
Piping retainer clamp
849825
£7,81 Unit Price incl. VAT
36
Water pump impeller cpl.
827929
Not Available
37
Water outlet pipe
871795
£7,78 Unit Price incl. VAT
38
Flat washer 22x12,1x1
274246
£1,00 Unit Price incl. VAT
39
Gasket ring
842595
Not Available
40
Water pump shaft assy.
844438
Not Available
41
Gasket ring
844439
Not Available
41
Gasket ring
873934
Not Available
