Engine displacement
500
2
Model
X9
3
Year
2006
4
Trim
X9 Evolution ABS
5
Parts Catalog
Front headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Selectors - Switches - Buttons
by
Rear headlamps - Turn signal lamps
Front headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
1
Headlamp
584404
Not Available
2
Cable harn.
582136
Not Available
3
Lamp 12V-3W
294131
£2,70 Unit Price incl. VAT
4
Lamp H7 12V-55W
294353
£34,40 Unit Price incl. VAT
5
Self tapping screw 2,9x9,5
015727
Not Available
6
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
7
Spring plate M6
254485
£1,64 Unit Price incl. VAT
8
Self tapping screw
297498
£0,60 Unit Price incl. VAT

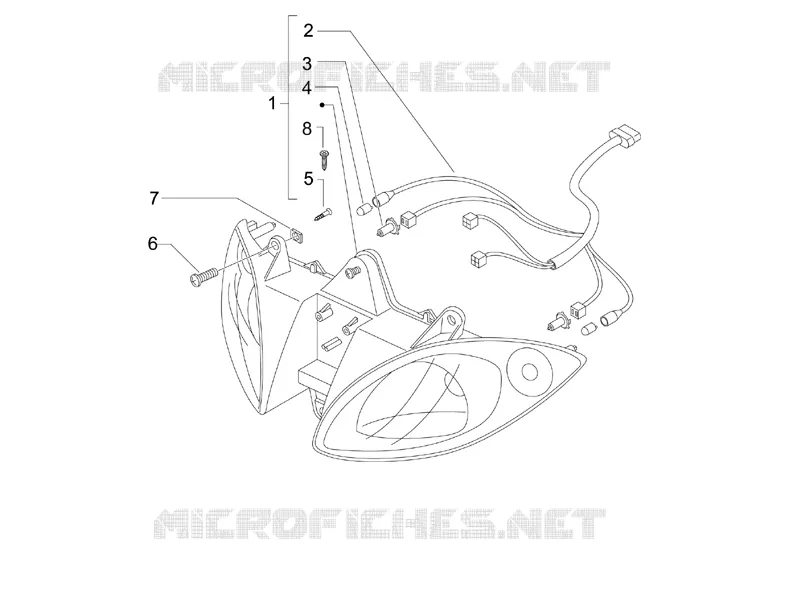

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
