Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Supply system
by
Handlebars - Master cil.
Cooling system
1
2
3
4
4
4
5
6
7
7
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
26
27
28
29
30
31
32
33
34
1
Expansion tank plug
623673
£17,92 Unit Price incl. VAT
2
Fuel tank gasket
620737
£2,17 Unit Price incl. VAT
3
Coolant tank
623848
Not Available
4
Hose clamp
CM001903
£1,87 Unit Price incl. VAT
5
Hose clamp
CM001904
£1,51 Unit Price incl. VAT
6
Fuel tank bracket
575864
£5,04 Unit Price incl. VAT
7
Hose clamp
CM001915
£1,99 Unit Price incl. VAT
8
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
9
Tank-cooler feed pipe
576766
Not Available
10
Upper rubber
351782
£2,02 Unit Price incl. VAT
11
Cooler-tank return pipe
575540
£19,00 Unit Price incl. VAT
12
Spacer
273288
£1,87 Unit Price incl. VAT
13
Washer d6,2x20x1
013092
Not Available
14
Metric screw M6x20
259830
Not Available
15
Oil delivery pipe
620779
Not Available
16
Lower rubber
258904
£1,54 Unit Price incl. VAT
17
Radiator-head pipe fitting link
620220
Not Available
18
Water cooler
57311R
£632,41 Unit Price incl. VAT
19
Electric fan
58170R
Not Available
19
Complete electric fan
640389
Not Available
19
Fan engine
621030
Not Available
20
Spring plate M6
254485
£1,64 Unit Price incl. VAT
21
Oil delivery pipe
620871
£7,76 Unit Price incl. VAT
22
Screw M6x16
272836
£1,13 Unit Price incl. VAT
25
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
26
Hose clamp
CM001905
£1,62 Unit Price incl. VAT
27
Hose clamp
CM001916
Not Available
28
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
29
Lower rubber
258904
£1,54 Unit Price incl. VAT
30
Flat washer 6,4x12x1
003056
Not Available
31
Spring washer 6,4x11,8x1
016406
Not Available
32
screw M6x16
031088
Not Available
33
Copper gasket
168077
£4,86 Unit Price incl. VAT
34
FEED PIPE X9
620764
£21,07 Unit Price incl. VAT

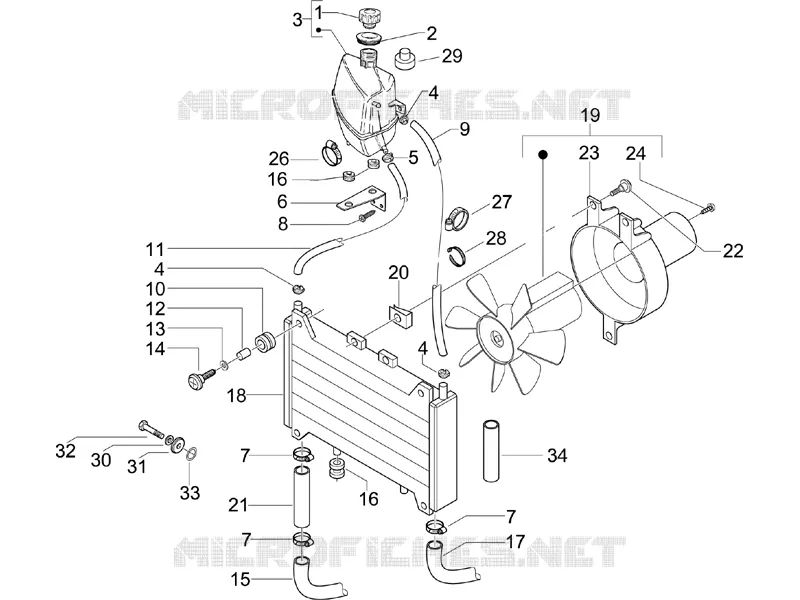

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
