Parts Catalog
Central cover - Footrests
6

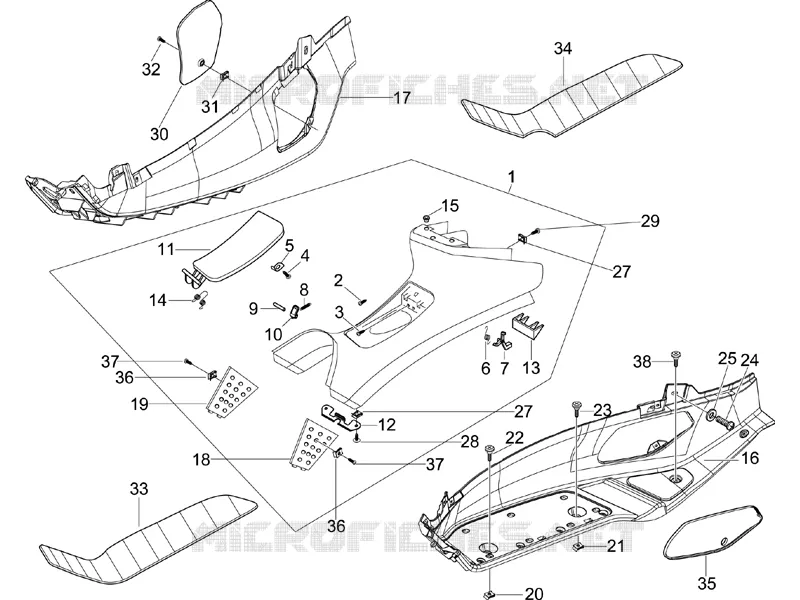

Parts Diagram
Parts Catalog
Fuel tank
by
Handlebars coverages
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
27
27
28
29
30
31
32
33
34
35
36
36
37
37
38
1
Complete central cover
65464100DE
£141,22 Unit Price incl. VAT
1
Complete central cover
65464100XN2
£141,22 Unit Price incl. VAT
1
Complete central cover
65464100ES
£141,22 Unit Price incl. VAT
1
Complete central cover
65464100BR
£141,22 Unit Price incl. VAT
1
Complete central cover
65464100EU
£141,22 Unit Price incl. VAT
1
Complete central cover
65464100EV
£141,22 Unit Price incl. VAT
1
Complete central cover
65464100ND
£141,22 Unit Price incl. VAT
1
Complete central cover
65464100Z1
£141,22 Unit Price incl. VAT
2
Self-tap screw M3x20
258146
£0,65 Unit Price incl. VAT
3
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
4
Self tapping screw
297498
£0,60 Unit Price incl. VAT
5
Plate
AP8161182
£15,12 Unit Price incl. VAT
6
Spring
575604
£2,70 Unit Price incl. VAT
7
Cam lever
576626
£2,20 Unit Price incl. VAT
8
Spring
577399
£7,40 Unit Price incl. VAT
9
Pin
577400
£4,68 Unit Price incl. VAT
10
Lever
577861
£5,75 Unit Price incl. VAT
11
Fuel flap
620250000C
£26,00 Unit Price incl. VAT
12
Flap retainer plate
624465
£7,96 Unit Price incl. VAT
13
Maintenance
620491
£3,46 Unit Price incl. VAT
14
Spring
621507
£7,58 Unit Price incl. VAT
15
Knurled bushing
830056
£1,27 Unit Price incl. VAT
16
LH footrest
623592000C
£54,49 Unit Price incl. VAT
17
RH footrest
624017000C
£54,49 Unit Price incl. VAT
18
Left lateral cover
CM0244030090
£34,02 Unit Price incl. VAT
18
Left lateral cover
CM024401
£42,35 Unit Price incl. VAT
19
RH side cover
CM0244040090
£34,02 Unit Price incl. VAT
19
RH side cover
CM024402
£42,35 Unit Price incl. VAT
20
Spring plate
CM017410
£0,71 Unit Price incl. VAT
21
Spring plate M6
254485
£1,64 Unit Price incl. VAT
22
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
23
Screw m6x30
271891
£1,28 Unit Price incl. VAT
24
Screw M6x16
272836
£1,13 Unit Price incl. VAT
25
Washer
297029
£1,27 Unit Price incl. VAT
27
Spring plate
CM017410
£0,71 Unit Price incl. VAT
28
screw
008265
Not Available
29
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
30
Right spark plug inspection cover
620273000C
£35,88 Unit Price incl. VAT
31
Spring plate
CM017410
£0,71 Unit Price incl. VAT
32
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
33
Mat
CM018801
£51,53 Unit Price incl. VAT
34
Mat
CM018802
Not Available
35
Left spark plug inspection cover
623654000C
£25,58 Unit Price incl. VAT
36
Plate
CM017404
£1,24 Unit Price incl. VAT
37
Screw d3,5x13
008372
Not Available
38
Metric screw TBC
259348
£1,04 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
