Engine displacement
350
2
Model
BV
3
Year
2014
4
Trim
BV 4T 4V ie E3
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Front shield
Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
9
1
Cyl.pist.-wrist pin assy unit
B015036
Not Available
2
Piston-crank pin unit A cat.
B0150370001
Not Available
2
Cat B. piston-crank pin unit
B0150370002
Not Available
2
Cat C. piston-crank pin unit
B0150370003
Not Available
2
Cat D. piston-crank pin unit
B0150370004
Not Available
3
Compression ring Ø78x1x3.35
B015279
£14,44 Unit Price incl. VAT
4
Oil scraper ring Ø78x1x3.25
B015280
£23,63 Unit Price incl. VAT
5
Oil scraper ring Ø78x2x3.2
B015281
£20,30 Unit Price incl. VAT
6
Pin retainer circlip
878897
£1,24 Unit Price incl. VAT
7
Gudgeon bucket
878896
£12,18 Unit Price incl. VAT
8
Crankcase/cylinder gasket 0,2 mm
B018886
Not Available
8
Crankcase/cylinder gasket 0,4 mm
B018888
Not Available
8
Crankcase/cylinder gasket 0,3 mm
B018887
Not Available
9
Locating dowel
435571
£0,72 Unit Price incl. VAT

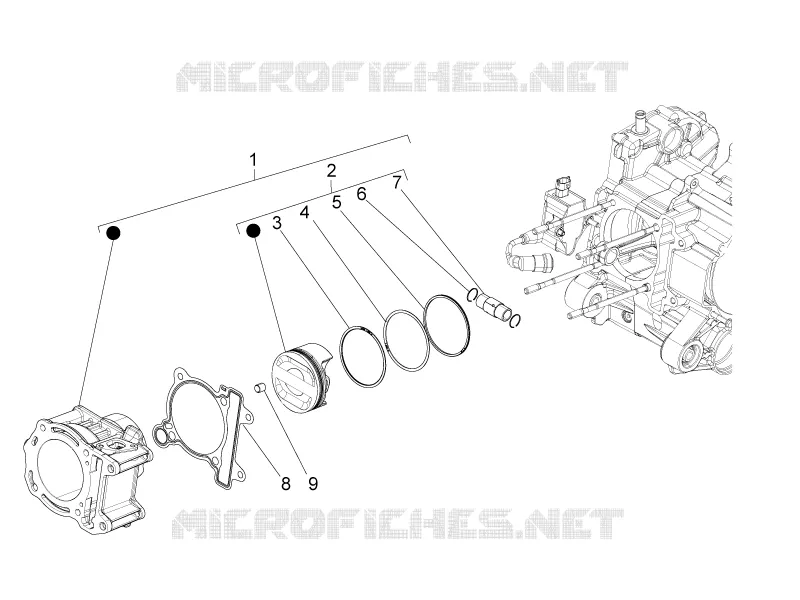

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
