1
Engine displacement
500
2
Model
FUOCO
3
Year
2013
4
Trim
Fuoco E3
5
Parts Catalog
Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Driven pulley
by
Cooler pump
Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
Complete flywheel cover
8729175
Not Available
1
Complete flywheel cover
B017463
Not Available
2
GUARNIZIONE CARTER / COPERCHIO VOLANO
872914
£19,68 Unit Price incl. VAT
3
Plug M12x1,5
411311
Not Available
4
RONDELLA PIANA D22 F12,1 S1
274246
£1,00 Unit Price incl. VAT
5
Oil plug
825665
Not Available
6
O-ring
479986
Not Available
7
FILTRO OLIO ASPIR.COMP
826033
£5,72 Unit Price incl. VAT
8
ANELLO OR 20,35X1,78
288474
£0,52 Unit Price incl. VAT
9
Oil filter plug
82823R
Not Available
9
TAPPO FILTRO OLIO
826165
£22,13 Unit Price incl. VAT
10
GUARNIZIONE OR 31,47x1,78
285536
£1,64 Unit Price incl. VAT
11
VITE L.70
434429
£2,42 Unit Price incl. VAT
12
Screw w/ flange M6x25
414837
Not Available
12
VITE ESAGONALE FLANGIATA M6X25 CL10,9
B016774
£1,27 Unit Price incl. VAT
13
VITE (M6X35)
414838
£1,27 Unit Price incl. VAT
14
screw
414835
Not Available
15
MOLLETTA
641201
£3,22 Unit Price incl. VAT
15
Spring
640925
Not Available
16
MANCETTA FISSAGGIO TUBAZIONE
849825
£7,81 Unit Price incl. VAT
17
Flywheel cover fixing bracket
639812
Not Available
17
STAFFA
640880
£36,12 Unit Price incl. VAT
18
TUBO SFIATO OLIO
829047
£7,51 Unit Price incl. VAT
19
TBCIC Screw M5x12
015935
Not Available
20
GUARNIZIONE O-RING k6
237553
£1,87 Unit Price incl. VAT
21
Oil filter
82883R
Not Available
21
Oil filter cpl.
82658R
Not Available
21
Oil filter
82960R
Not Available
22
FASCETTA STRINGITUBO
CM002901
£0,62 Unit Price incl. VAT
23
TUBO SCARICO ACQUA
871795
£7,78 Unit Price incl. VAT
24
LAMIERINO BLOCC.VALV.CON P.I.
876060
£12,05 Unit Price incl. VAT
24
LAMIERINO BLOCC.VALV.P
828930
£6,73 Unit Price incl. VAT
25
screw
487671
Not Available
26
ROSETTA (16X10.5X2.5)
486075
£1,32 Unit Price incl. VAT
27
VALVOLA REGOL.PRESSIONE OLIO
829661
£11,54 Unit Price incl. VAT
28
MOLLA VALVOLA PRESS.OL
829486
£1,72 Unit Price incl. VAT
29
TAPPO FASATURA X RIC.
8290405
£16,91 Unit Price incl. VAT
30
O-ring
479986
Not Available
31
Oil pressure sensor
82580R
Not Available
31
Oil pressure sensor
641541
Not Available
32
SUPPORTO LAMELLE COMPLETO
82778R
£37,46 Unit Price incl. VAT
33
FASCETTA
845978
£8,57 Unit Price incl. VAT
34
Gasket ring
844439
Not Available
34
Gasket ring
873934
Not Available
35
ALBERO POMPA ACQUA
872536
£101,35 Unit Price incl. VAT
36
Water pump impeller cpl.
827929
Not Available
37
ANELLO DI TENUTA POMPA ACQUA
82991R
£27,28 Unit Price incl. VAT
37
Gasket ring
842595
Not Available

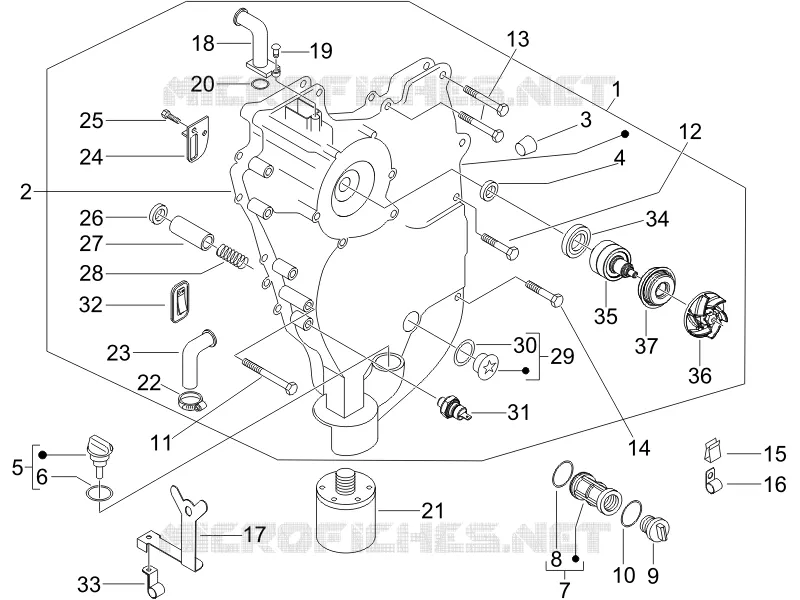

Find the detailed Flywheel magneto cover - Oil filter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
