1
Engine displacement
500
2
Model
FUOCO
3
Year
2013
4
Trim
Fuoco E3
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Cooling system
by
Rear suspension - Shock absorber/s
Front shield
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
SCUDO ANTERIORE
653414000C
£272,15 Unit Price incl. VAT
1
Front shield
653414
Not Available
2
VITE METRICA CON INT.A CROCE M6x16.
272836
£1,13 Unit Price incl. VAT
3
VITE
258249
£0,73 Unit Price incl. VAT
4
PIASTRINA ELASTICA
CM017410
£0,71 Unit Price incl. VAT
5
VITE METRICA INTAGLIO A CROCE
259348
£1,04 Unit Price incl. VAT
6
Left shield lateral cover
656924
Not Available
6
Left shield lateral cover
65341900EV
Not Available
6
Left shield lateral cover
65341900R7
Not Available
6
Left shield lateral cover
65341900EZ
Not Available
6
Left shield lateral cover
65341900RP
Not Available
6
Left shield lateral cover
65341900NI
Not Available
6
Left shield lateral cover
65341900F2
Not Available
6
Left shield lateral cover
65341900NG
Not Available
6
Left shield lateral cover
653419
Not Available
7
VITE
624995
£1,27 Unit Price incl. VAT
8
VITE METRICA CON CODOLO
575249
£0,62 Unit Price incl. VAT
9
Self-tap screw
576189
Not Available
10
PIASTRINA ELASTICA M6
254485
£1,64 Unit Price incl. VAT
11
GRIGLIA LATERALE SCUDO SX
653421
£34,90 Unit Price incl. VAT
12
DISTANZIALE ELASTICO
479882
£1,16 Unit Price incl. VAT
13
PIASTRINA ELASTICA
230359
£0,95 Unit Price incl. VAT
14
VITE
624995
£1,27 Unit Price incl. VAT
15
DADO ES.FLG.M6 DIN-6923
288245
£0,76 Unit Price incl. VAT
15
PIASTRINA ELASTICA M6
254485
£1,64 Unit Price incl. VAT
16
Right shield lateral cover
65342000EV
Not Available
16
Right shield lateral cover
65342000R7
Not Available
16
Right shield lateral cover
65342000F2
Not Available
16
Right shield lateral cover
65342000RP
Not Available
16
Right shield lateral cover
656922
Not Available
16
Right shield lateral cover
65342000NI
Not Available
16
Right shield lateral cover
65342000EZ
Not Available
16
Right shield lateral cover
653420
Not Available
16
Right shield lateral cover
65342000NG
Not Available
17
GRIGLIA LATERALE SCUDO DX
653422
£34,90 Unit Price incl. VAT
18
DISTANZIALE ELASTICO
479882
£1,16 Unit Price incl. VAT
19
PIASTRINA ELASTICA
230359
£0,95 Unit Price incl. VAT
20
VITE
624995
£1,27 Unit Price incl. VAT
21
DADO ES.FLG.M6 DIN-6923
288245
£0,76 Unit Price incl. VAT
21
PIASTRINA ELASTICA M6
254485
£1,64 Unit Price incl. VAT
22
Instrument panel rear cover
653415000C
Not Available
23
VITE TESTA BOMBATA ESAGONO INCASSATO
654507
£2,39 Unit Price incl. VAT
24
PIASTRINA ELASTICA M6
254485
£1,64 Unit Price incl. VAT
25
Self-tap screw
576189
Not Available
26
PIASTRINA ELASTICA
CM017410
£0,71 Unit Price incl. VAT
27
COPERTURA CENTRALE SCUDO
653416
£72,24 Unit Price incl. VAT
27
Shield central cover
6534160090
Not Available
27
COPERTURA CENTRALE SCUDO
65341600BR
£132,66 Unit Price incl. VAT
28
Shield central grille
653417
Not Available
29
DISTANZIALE ELASTICO
479882
£1,16 Unit Price incl. VAT
30
PIASTRINA ELASTICA
230359
£0,95 Unit Price incl. VAT
31
Self-tap screw
576189
Not Available
32
PIASTRINA ELASTICA
CM017410
£0,71 Unit Price incl. VAT
33
Shield lower closing
65341800EZ
Not Available
33
Shield lower closing
65341800NG
Not Available
33
CHUSURA INFERIORE SCUDO
65341800RP
£47,08 Unit Price incl. VAT
33
CHUSURA INFERIORE SCUDO
65341800EV
£47,08 Unit Price incl. VAT
33
CHUSURA INFERIORE SCUDO
65341800F2
£133,22 Unit Price incl. VAT
33
Shield lower closing
65341800NI
Not Available
33
CHUSURA INFERIORE SCUDO
65341800R7
£27,06 Unit Price incl. VAT
33
CHUSURA INFERIORE SCUDO
653418
£135,12 Unit Price incl. VAT
33
Shield lower closing
656921
Not Available
34
VITE
624995
£1,27 Unit Price incl. VAT
35
PIASTRINA ELASTICA M6
254485
£1,64 Unit Price incl. VAT
36
Left chromed protection
653697
Not Available
37
Right chromed protection
653698
Not Available
38
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
£0,60 Unit Price incl. VAT

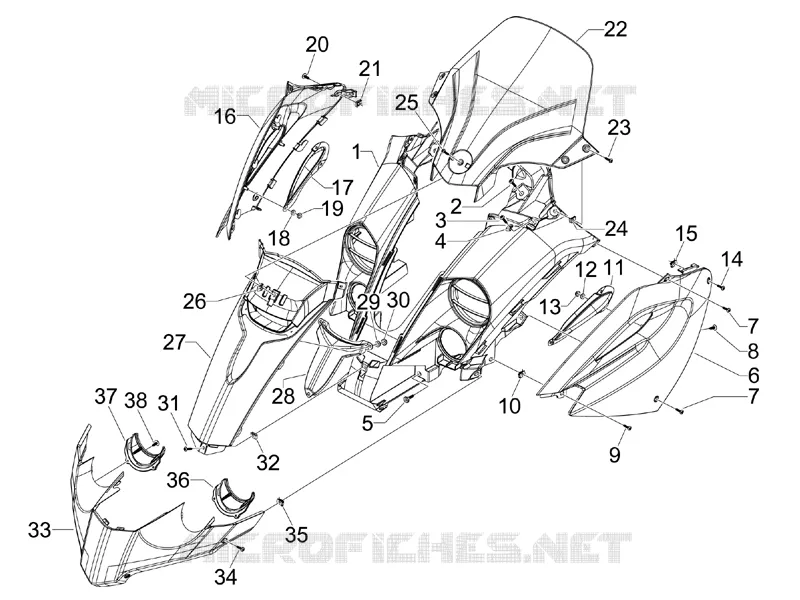

Find the detailed Front shield GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
