Parts Catalog
Brakes pipes - Calipers
6

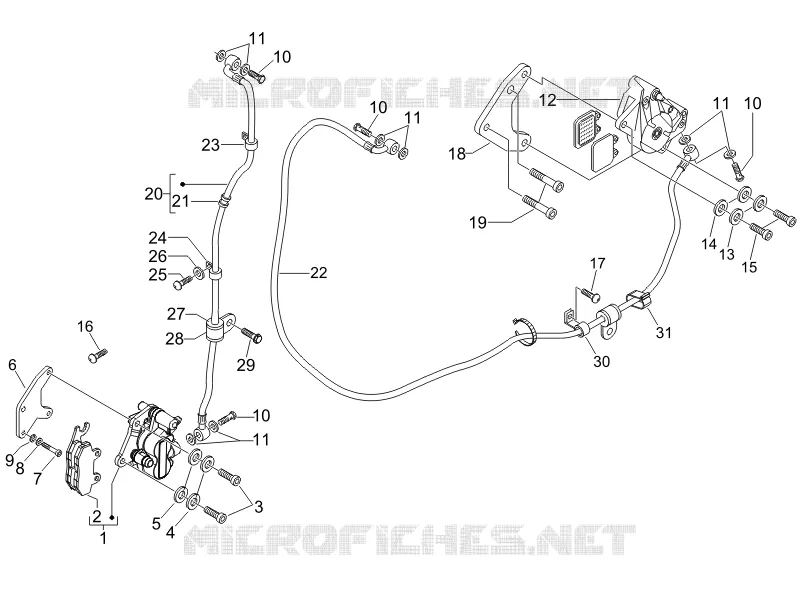

Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Crankcase
Brakes pipes - Calipers
26
11
31
30
29
28
27
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
11
11
10
10
10
10
9
8
7
6
5
4
3
2
1
1
Brake caliper Heng Tong
CM068301
Not Available
2
Brake pads couple Heng Tong
647078
£48,58 Unit Price incl. VAT
3
screw
319165
£1,27 Unit Price incl. VAT
4
Spring washer
709047
£0,70 Unit Price incl. VAT
5
Washer
016604
Not Available
6
Brake caliper support plate
649553
Not Available
6
plate
599584
Not Available
7
screw
564486
Not Available
8
Washer
709110
Not Available
9
Washer
709646
Not Available
10
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
11
Gasket
127927
£1,04 Unit Price incl. VAT
12
Rear brake caliper
CM068304
£127,56 Unit Price incl. VAT
13
Spring washer
709047
£0,70 Unit Price incl. VAT
14
Flat washer 8,2x17x2,5
828961
£0,52 Unit Price incl. VAT
15
screw
598921
£1,06 Unit Price incl. VAT
16
screw
018629
Not Available
17
Screw M6x16
272836
£1,13 Unit Price incl. VAT
18
CALIPER SUPPORT PLATE
649162
£33,30 Unit Price incl. VAT
18
plate for mounting rear caliper
647798
Not Available
19
screw
647799
£4,62 Unit Price incl. VAT
20
BREAK PIPES
975693
Not Available
21
Fairlead
274350
Not Available
22
REAR BRAKE PIPE
647695
£71,66 Unit Price incl. VAT
23
Hose clamp
307166
£1,27 Unit Price incl. VAT
24
Hose clamp
269273
£1,90 Unit Price incl. VAT
25
Hex socket screw
122675
£0,38 Unit Price incl. VAT
26
Spring washer 6,4x11x0,5
006966
Not Available
27
Fairlead
230636
£3,90 Unit Price incl. VAT
28
Hose clamp
564836
£1,50 Unit Price incl. VAT
29
Screw w/ flange M6x16
434541
Not Available
30
Hose clamp
229343
Not Available
31
Hose clamp
564761
£1,43 Unit Price incl. VAT
