1
Engine displacement
250
2
Model
NEXUS
3
Year
2006
4
Trim
Nexus -SP- E3
5
Parts Catalog

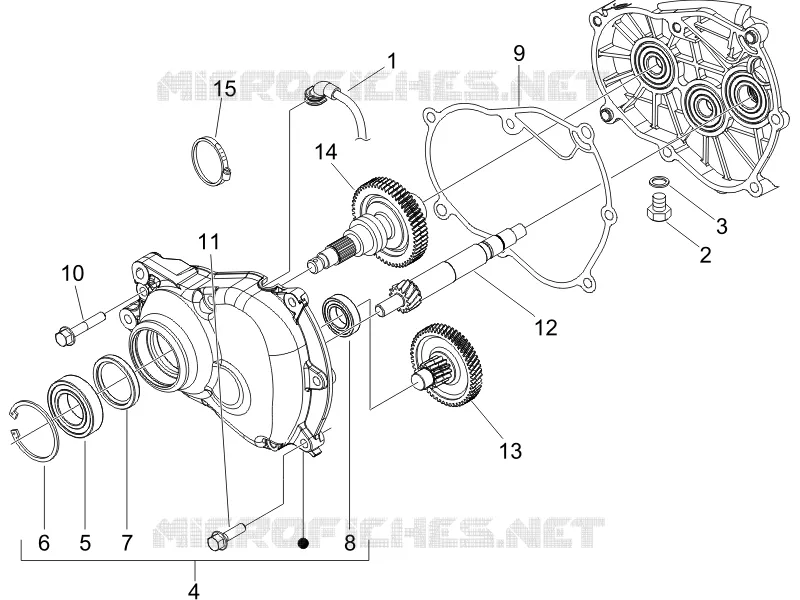

Reduction unit
6
Parts Diagram
Parts Catalog
Selectors - Switches - Buttons
by
Swinging arm
Reduction unit
15
8
14
13
12
11
10
9
7
6
5
4
3
2
1
1
Breather
830862
£9,98 Unit Price incl. VAT
1
Breather pipe
844669
Not Available
2
Hex socket screw M8x12
269755
£1,36 Unit Price incl. VAT
3
Washer 8.2x12x1
485703
£0,96 Unit Price incl. VAT
4
Side cover
842143
Not Available
5
Radial bearing 30x55x13
82659R
Not Available
6
Circlip
829206
£1,36 Unit Price incl. VAT
7
Radial ball bearing 15x42x13
485912
Not Available
8
Oil seal 38x50x7
829201
Not Available
8
Oil seal 38x50x7
873351
Not Available
9
Screw w/ flange M8x45
487211
Not Available
10
screw M8x40
825758
Not Available
11
Gasket
847931
£7,80 Unit Price incl. VAT
12
Pulley shaft
830071
Not Available
13
Transmission shaft
8407685
Not Available
14
Rear wheel axis cpl.
8407705
Not Available
15
Hose clamp
827277
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
