Engine displacement
150
2
Model
FLY
3
Year
2016
4
Trim
Fly 4T 3V ie
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Helmet huosing - Undersaddle
by
Plates - Emblems
Crankcase
1
2
3
4
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
1
2nd cat. complete crankcase
CM2658010B
£945,80 Unit Price incl. VAT
1
Complete crankcase 1st cat.
CM2658010A
£945,80 Unit Price incl. VAT
1
Complete crankcase 1st cat.
CM1682010001
Not Available
1
2nd cat. complete crankcase
CM1682010002
Not Available
2
Nozzle
B018059
£7,39 Unit Price incl. VAT
3
Pin d.9,5 h=15
B015956
£0,74 Unit Price incl. VAT
4
Plug M12x1,5x11
B015433
£7,84 Unit Price incl. VAT
5
Calibrated nozzle
880706
£9,28 Unit Price incl. VAT
6
Locating dowel
B015957
£1,00 Unit Price incl. VAT
7
Radial bearing 20x50x14
83027R
£11,15 Unit Price incl. VAT
8
Radial bearing 15x42x13
83026R
£5,51 Unit Price incl. VAT
9
Stud bolt
879887
Not Available
10
Engine connection silent block
B015437
Not Available
11
Locating dowel
B015958
Not Available
12
Circlip 25x26,9x1,2
B015959
£1,27 Unit Price incl. VAT
13
Gasket ring 22x35x7
B014137
Not Available
14
Ring container lamination
876646
£4,98 Unit Price incl. VAT
15
Screw M5x10
018575
Not Available
16
Oil pressure adjusting valve
B015432
Not Available
17
Screw w/ flange M6x60
B016425
£1,62 Unit Price incl. VAT
18
Half crankcase gasket
B015429
Not Available
19
Screw w/ flange M5x16
830061
£2,48 Unit Price incl. VAT
20
Oil bulhead
B014134
£9,64 Unit Price incl. VAT
21
Upper oil bulkhead
B014135
£7,10 Unit Price incl. VAT
22
Valve spring
B015431
£1,24 Unit Price incl. VAT
23
Filter door insert
B015430
£6,30 Unit Price incl. VAT
24
Gasket
431065
£0,90 Unit Price incl. VAT

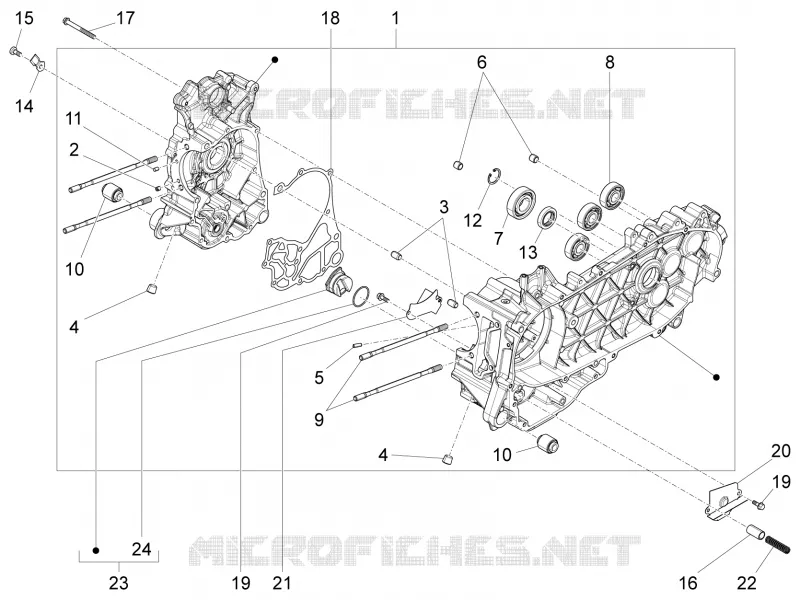

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
