1
Engine displacement
200
2
Model
RUNNER
3
Year
2010
4
Trim
Runner ST 4T E3
5
Parts Catalog
Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Remote control switches - Battery - Horn
by
Front wheel
Side cover - Spoiler
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
26
27
27
1
LH side panel
65508800H1
£39,54 Unit Price incl. VAT
1
LH side panel
655088000G
Not Available
1
LH side panel
673522000C
£39,54 Unit Price incl. VAT
2
RH side panel
65508900H1
£39,54 Unit Price incl. VAT
2
RH side panel
655089000G
Not Available
2
RH side panel
673523000C
£39,54 Unit Price incl. VAT
3
Left under side cover
949407000G
Not Available
3
Left under side cover
949407000C
£30,22 Unit Price incl. VAT
4
Flat washer 4,2x12x1
013763
Not Available
5
Right under side cover
949408000G
Not Available
5
Right under side cover
949408000C
£30,22 Unit Price incl. VAT
6
Spoiler
6565230090
Not Available
6
Spoiler
656523
Not Available
6
Spoiler
9494090090
Not Available
6
Spoiler
949409
Not Available
7
Spring plate
CM017410
£0,71 Unit Price incl. VAT
8
Self tapping screw
297498
£0,60 Unit Price incl. VAT
9
Self-tap screw
576189
Not Available
10
Spring plate
CM017409
£1,27 Unit Price incl. VAT
11
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
12
Screw M6x10
959614
£7,09 Unit Price incl. VAT
13
right passenger handle
656034000C
£51,43 Unit Price incl. VAT
13
right passenger handle
6241090090
Not Available
13
right passenger handle
624109
£27,10 Unit Price incl. VAT
14
Left passenger handle
624108
Not Available
14
Left passenger handle
656035000C
£51,43 Unit Price incl. VAT
14
Left passenger handle
6241080090
Not Available
15
Spring plate M8
575268
£2,24 Unit Price incl. VAT
16
screw
970273
£0,72 Unit Price incl. VAT
17
left semi tail fairing
94941300BR
Not Available
17
LH Half-rear fairing,grey
94941300EV
£23,08 Unit Price incl. VAT
17
left semi tail fairing
949413
£17,30 Unit Price incl. VAT
17
LH Half-rear fairing,ap.black
9494130090
Not Available
17
left semi tail fairing
949413000C
£23,08 Unit Price incl. VAT
17
left semi tail fairing
94941300NI
Not Available
17
left semi tail fairing
94941300R7
Not Available
18
Spring plate
CM017410
£0,71 Unit Price incl. VAT
19
Left undertail section
6550450090
£65,76 Unit Price incl. VAT
19
Left undertail section
65504500R7
£65,76 Unit Price incl. VAT
19
Left undertail section
65504500BR
£65,76 Unit Price incl. VAT
19
Left undertail section
655045000C
£65,76 Unit Price incl. VAT
19
Left undertail section
65504500NI
Not Available
19
Left undertail section
65504500EV
£65,76 Unit Price incl. VAT
19
Left undertail section
655045
Not Available
20
Self-tap screw
576189
Not Available
21
Right undertail section
94941200R7
£23,08 Unit Price incl. VAT
21
Right undertail section
949412000C
£23,08 Unit Price incl. VAT
21
Right undertail section
94941200EV
£23,08 Unit Price incl. VAT
21
Right undertail section
94941200BR
Not Available
21
Right undertail section
9494120090
Not Available
21
Right undertail section
94941200NI
Not Available
21
Right undertail section
949412
£17,30 Unit Price incl. VAT
22
Spring plate
CM017410
£0,71 Unit Price incl. VAT
23
Right undertail section
65504600BR
£65,76 Unit Price incl. VAT
23
Right undertail section
65504600R7
£65,76 Unit Price incl. VAT
23
Right undertail section
6550460090
£65,76 Unit Price incl. VAT
23
Right undertail section
655046
£52,60 Unit Price incl. VAT
23
Right undertail section
655046000C
£66,22 Unit Price incl. VAT
23
Right undertail section
65504600NI
Not Available
23
Right undertail section
65504600EV
£65,76 Unit Price incl. VAT
24
Self-tap screw
576189
Not Available
25
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
26
Spring plate
CM017410
£0,71 Unit Price incl. VAT
27
Self-tap screw
576189
Not Available

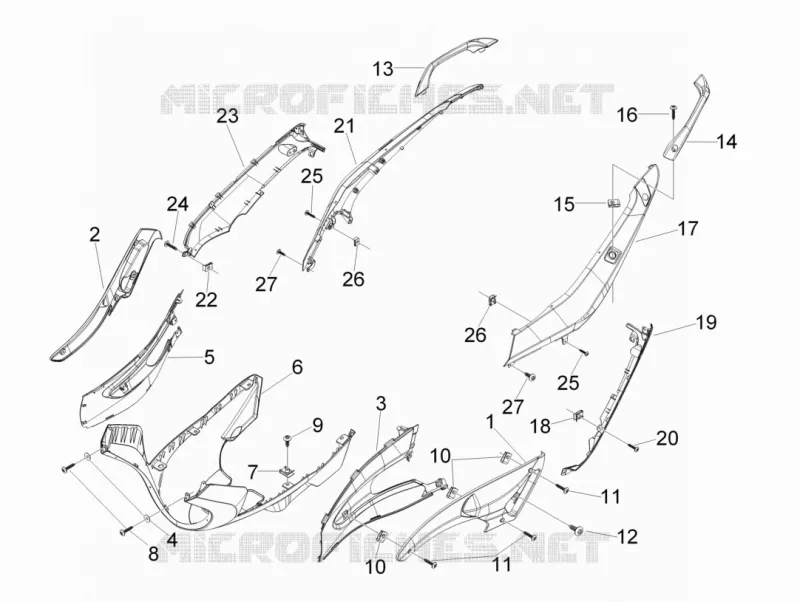

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
