1
Engine displacement
200
2
Model
RUNNER
3
Year
2006
4
Trim
Runner VXR 4T E3
5
Parts Catalog

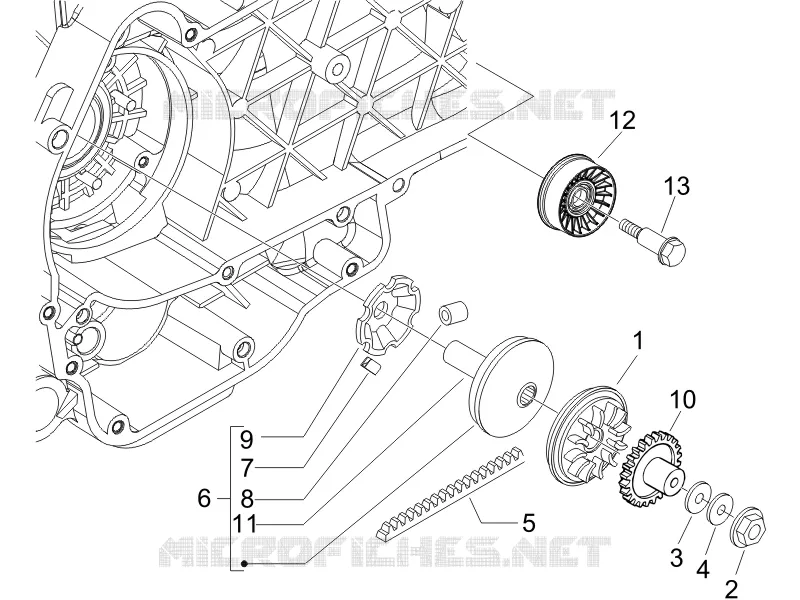

Driving pulley
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
Driven pulley
Driving pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Fixed pulley
834774
£42,08 Unit Price incl. VAT
2
Flanged nut M12
436783
Not Available
3
Plain washer 17x32x1
434885
£1,91 Unit Price incl. VAT
4
O-ring
832508
£1,82 Unit Price incl. VAT
5
V-belt
840908
£118,28 Unit Price incl. VAT
6
Half-pulley assy., driving
CM144404
£100,97 Unit Price incl. VAT
7
Sliding block
434855
Not Available
8
Pin roller-set
4857135
£17,40 Unit Price incl. VAT
9
Roller contrast
842204
£14,02 Unit Price incl. VAT
10
Torque limiter
840815
Not Available
11
Spacer
483889
£35,44 Unit Price incl. VAT
12
Toothed pulley
833989
£67,72 Unit Price incl. VAT
13
Special screw
828217
£1,58 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
