Engine displacement
125
2
Model
GRANTURISMO
3
Year
2005
4
Trim
Granturismo L Potenziato
5
Parts Catalog
Silencer
6

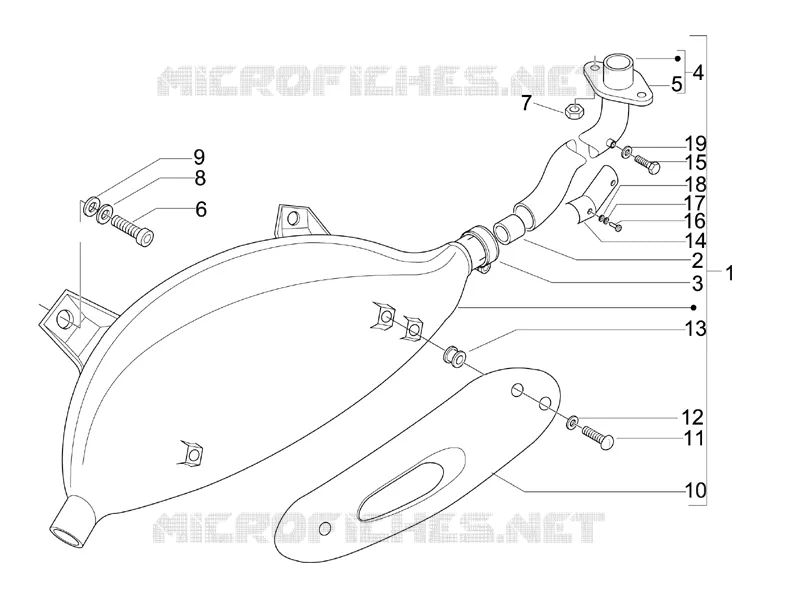

Parts Diagram
Parts Catalog
Carburetor's components
by
Air filter
Silencer
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
SILINCER ASSY
847564
Not Available
1
Silencer
8457865
Not Available
2
Graphite bushing
826388
Not Available
3
Hose clamp
842077
Not Available
4
Manifold
842168
Not Available
5
Flange
826391
Not Available
6
screw M8x30
015792
Not Available
7
Nut
436947
£1,14 Unit Price incl. VAT
8
Plain washer 8,2x20x2,5
013861
Not Available
9
Spring washer 16x8,2x2,2
834187
£1,04 Unit Price incl. VAT
10
Protection
833986
£48,14 Unit Price incl. VAT
11
Self-tapping screw
430264
£0,62 Unit Price incl. VAT
12
Washer
487666
£1,76 Unit Price incl. VAT
13
Fairlead
487665
£1,94 Unit Price incl. VAT
14
Protection
841051
Not Available
15
Screw w/ flange M10
433122
£4,49 Unit Price incl. VAT
16
screw M5x10
433800
£0,86 Unit Price incl. VAT
17
Washer
828535
£0,16 Unit Price incl. VAT
18
Spring washer 8,5x5,1x1,5
016405
Not Available
19
Washer ø10.2xø15x2
016195
Not Available
